Architectural Expanded Mesh for Building Facades and Ceilings

Truji Architectural Decorative Mesh Co., supply architectural expanded mesh products that are classified into diamond, hexagonal, and square pattern designs. These meshes are made from stainless steel, aluminum, and mild steel to ensure corrosion resistance, durability, and structural stability. Key features include uniform opening sizes, high strength-to-weight ratio, air and light permeability, and straightforward installation for facades, partitions, ceilings, and sunshades. Material thickness ranges from 0.5 mm to 3.0 mm, with opening dimensions from 1 mm to 20 mm, accommodating a wide range of functional and aesthetic requirements. We provide product customization and inquiry, welcome to negotiate

Architectural Expanded Mesh Specifications

• Materials: Stainless steel, aluminum, mild steel, or galvanized steel.
• Mesh Size: From 2 mm to 100 mm. Common sizes are 5 mm, 10 mm, 20 mm, and 50 mm.
• Wire Thickness: From 0.5 mm to 4 mm, with 1 mm to 3 mm being most common.
• Sheet Sizes: 1000 mm x 2000 mm, 1200 mm x 2400 mm, and 1500 mm x 3000 mm. Custom sizes available.
• Pattern Types: Mostly diamond, but also square, rectangular, and others.
• Opening Shape: Usually diamond-shaped, can be square or rectangular.
• Weight per Square Meter: Stainless steel weighs 5 kg/m2 to 20 kg/m2, aluminum weighs 2 kg/m2 to 8 kg/m2.
• Load Capacity: From 200 N/m2 to 1000 N/m2, depending on material and wire thickness.
• Open Area: 30% to 80%, depending on application.
• Surface Finish: Available in anodized, powder-coated, or galvanized.
• Expansion Angle: Usually between 30° and 60°.
• Corrosion Resistance: Stainless steel resists rust best, followed by galvanized and aluminum mesh.
• Tensile Strength: Ranges from 300 MPa to 700 MPa, with stainless steel being the strongest.
• Forming Method: Made by cutting and stretching a metal sheet into a pattern.
• Temperature Resistance: Withstands temperatures from -50°C to 500°C, with stainless steel being most heat-resistant.

Picture Display and Description

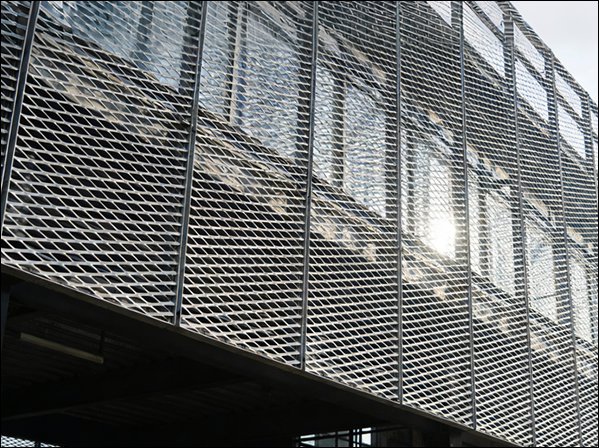

Silver Architectural Expanded Metal Mesh For Building Exterior Facade Cladding Systems

• Material : Aluminum 3003-H14 or Galvanized Steel.
• Pattern: Raised Diamond Mesh.
• LWD (Long Way): 50mm - 00mm. The horizontal width of the diamond opening.
• SWD (Short Way): 20mm- 80mm. The vertical height of the diamond opening.
• Strand Width: 3.0mm - 0.0mm. The thickness of the metal "ribbon" itself.
• Overall Thickness: 5.0mm- 30.0mm. The depth of the panel from front to back.
• Open Area: 40%- 60%. The percentage of the panel that allows light and air through.
• Surface Treatment: Anodized Silver.
• Framing: U-profile or L-angle perimeter frame.
• Application: Exterior sunshades and building skins.

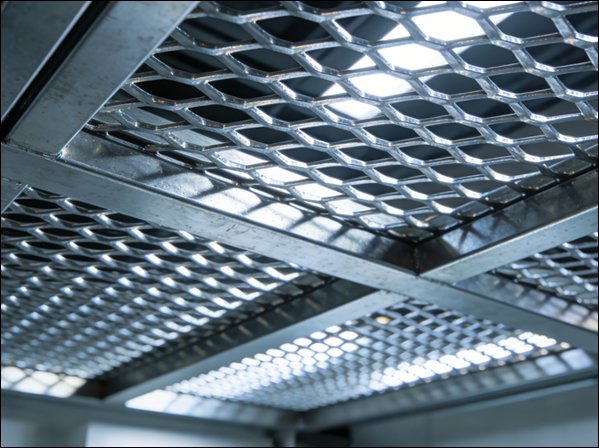

Interior Suspended Expanded Metal Mesh Ceiling Tiles For Modern Office Building Design

• Material: Lightweight Aluminum Alloy.
• Panel Size: 600mm x 600mm or 600mm x 1200mm. Standard drop-ceiling sizes.
• LWD (Long Way): 25mm- 60mm. Smaller diamonds for a refined interior look.
• SWD (Short Way): 10mm- 30mm. Tight spacing to hide overhead pipes.
• Strand Width: 2.0mm- 5.0mm. Thin strands to keep the panels lightweight.
• Material Thickness: 1.0mm - .0mm. Thin metal sheets used for easy handling.
• Installation: Lay-in T-bar or Clip-in system.
• Acoustics: Compatible with acoustic mineral wool backer pads.
• Fire Rating: Class A Non-combustible.
• Application: Office lobbies and retail store ceilings.

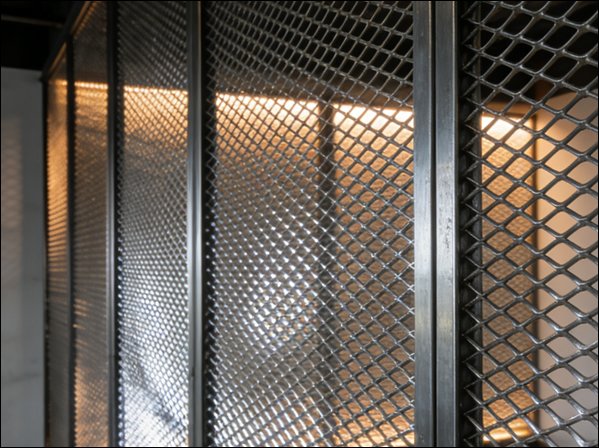

Decorative Expanded Metal Wall Partition Panels With Integrated Interior LED Backlighting Features

• Material: Cold Rolled Carbon Steel.
• LWD (Long Way): 10mm- 40mm. Small diamonds for a "mesh fabric" appearance.
• SWD (Short Way): 5mm - 0mm. Provides high density for privacy.
• Material Thickness: 1.5mm - .5mm. Balanced for rigidity and weight.
• Panel Height: 2000mm- 3500mm. Custom heights for floor-to-ceiling walls.
• Frame Type: Rectangular hollow section (RHS) steel frame.
• Finish: Matte Gray or Charcoal Powder Coat.
• Light Gap: 50mm- 150mm. The space behind the mesh for LED strips.
• Privacy Level: Medium-High (directional transparency).
• Application: Room dividers and decorative feature walls.

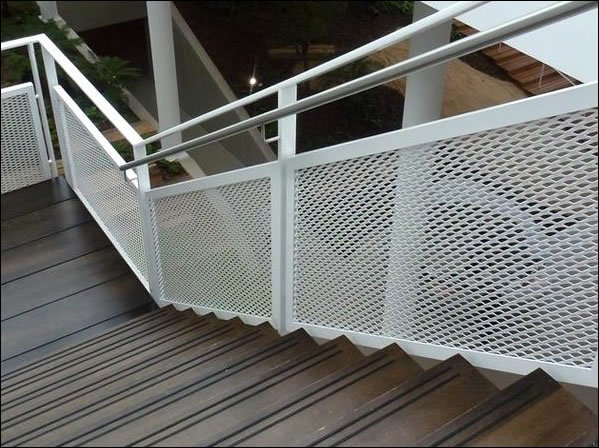

Architectural White Expanded Metal Infill Panels For Staircase Safety Handrail Guardrail

• Material: Structural Carbon Steel.
• LWD (Long Way): 30mm- 60mm. Medium size to prevent climbing.
• SWD (Short Way): 15mm- 30mm. Small enough to keep hands/feet safe.
• Strand Thickness: 3.0mm- 5.0mm. Heavy-duty thickness for safety.
• Panel Width: 800mm- 1200mm. Sized to fit between railing posts.
• Bordering: Fully welded flat bar frame.
• Finish: Weather-resistant Outdoor White Powder Coat.
• Mounting: Tab-welded or bolted to handrail posts.
• Application: Balconies, staircases, and pedestrian ramps.

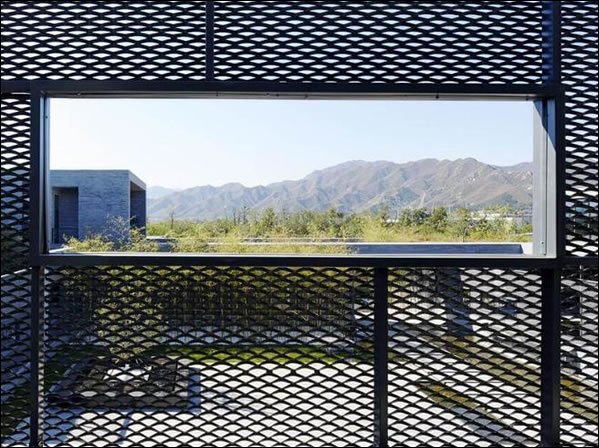

Black Expanded Metal Sunshade Screens For Building Window Solar Heat Gain Protection

• Material: Heavy Gauge Steel or Aluminum.
• LWD (Long Way): 100mm - 50mm. Very large diamonds for an industrial look.
• SWD (Short Way): 40mm - 100mm. Wide vertical openings for clear views.
• Strand Depth: 10mm - 40mm. Deep "fins" that act like sun louvers.
• Strand Thickness: 3.0mm- 6.0mm. Thick enough to span large windows.
• Offset Distance: 150mm- 400mm. Distance from the mesh to the window.
• Finish: Matte Black or High-Durability Powder.
• UV Protection: Blocks up to 80% of direct solar radiation.
• Structural Support: Vertical steel "outrigger" arms.
• Application: High-rise offices and modern residential exteriors.

White Aluminum Expanded Metal Mesh Panels For Interior Ventilation Drop Ceiling Systems

• Material: Architectural Grade Aluminum.
• LWD (Long Way): 12mm- 30mm. Micro-diamonds for a clean, flat look.
• SWD (Short Way): 6mm- 15mm. High density to conceal ceiling equipment.
• Strand Width: 1.5mm- 3.0mm. Very narrow strands for high transparency.
• Open Area: 70%- 85%. Maximum airflow for ventilation.
• Weight: 1.5kg- 3.0kg per m2. Very light for safe overhead use.
• Coating: Electrostatic White Powder Coating.
• Light Reflectance: High (helps brighten the room).
• Fixing: Perimeter clips or torsion springs.
• Application: Airports, malls, and public corridors.
