Perforated Metal Sheet Panels for Architectural Facade Cladding and Exterior Walls

Truji Architectural Mesh Co. manufactures Perforated Metal Sheet Panels for Architectural Facade Cladding and Exterior Walls products. These panels are made by punching holes of various shapes and patterns into metal sheets such as aluminum, stainless steel, or galvanized steel. They are used in commercial buildings, public facilities, transport hubs, and institutional projects for functions including ventilation, sun shading, visual screening, and safety. Perforation types include round, square, slotted, hexagonal, and custom patterns. Panel thickness typically ranges from 1.0 mm to 4.0 mm, with hole sizes from 3 mm to 30 mm. Standard dimensions are 1000 mm × 2000 mm, 1200 mm × 2400 mm, or customized according to project needs. Surface finishes include powder coating, anodizing, and PVDF painting. The product can be mounted using exposed or concealed systems, depending on structural and design requirements. It can also be used in combination with other facade systems for composite cladding solutions. We support engineering projects with design assistance, structural advice, and on-site installation guidance. Welcome to establish business contacts and discuss cooperation.

Project Analysis

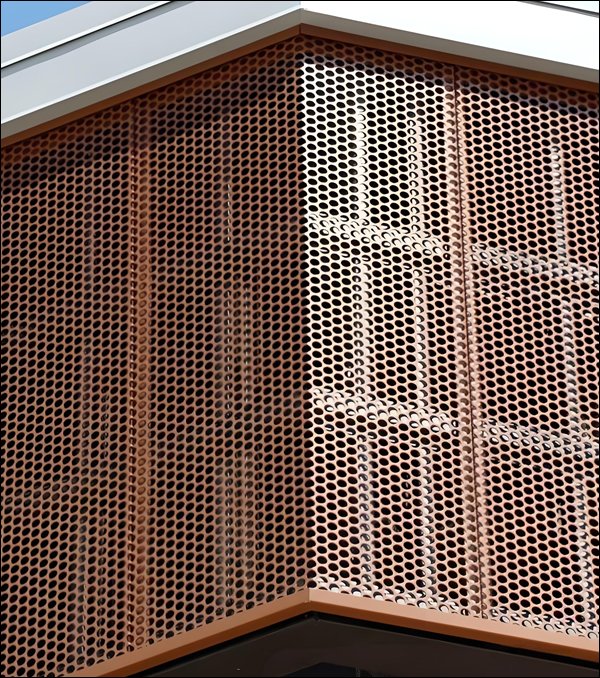

Hexagonal Hole Bronze Perforated Metal Sheets for Exterior Wall and Facade Design

• Material and Finish: Available in aluminum or galvanized steel, treated with a bronze powder-coated surface for durability.
• Perforation Details: Consistent hexagonal holes, approximately 10 mm wide, arranged in a regular grid pattern.
• Panel Dimensions: Common size: 1200 mm × 2400 mm; thickness from 2.5 mm to 4.0 mm.
• Installation Method: Panels installed onto vertical support structures with edge alignment for modern building corner facades
• Application: Ideal for architectural facade panels and wall cladding systems where ventilation, shading, and exterior aesthetics are required.

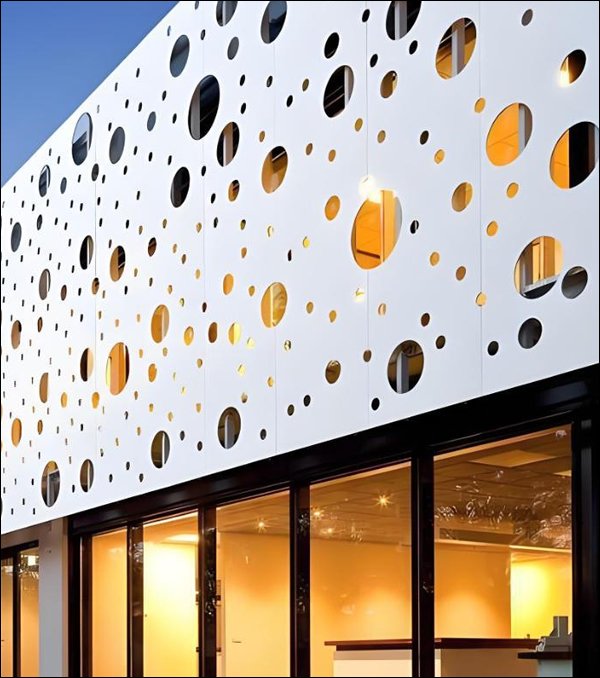

Round Hole White Aluminum Perforated Metal Panels for Architectural Facade Cladding

• Material and Finish: High-strength aluminum sheets with a white powder-coated finish for corrosion resistance.
• Perforation Details: Randomly arranged round holes with diameters ranging from 10 mm to 80 mm.
• Panel Dimensions: Standard panel size: 1000 mm × 3000 mm; thickness: 2.0 mm to 3.0 mm.
• Installation Method: Mounted on concealed aluminum support frames with custom fasteners for clean surface appearance.
• Application: Used as a perforated aluminum facade cladding system for building exteriors to provide sunlight control, ventilation, and a patterned visual effect.
