Decorative Woven Wire Mesh for Walls, Ceilings, Dividers, Balustrades, and Facades

Truji Architectural Mesh Co. manufactures Decorative Woven Wire Mesh products, used for architectural applications such as wall coverings, ceilings, space dividers, balustrades, and exterior facades. The mesh is produced by interweaving metal wires in patterns such as plain weave, twill weave, and Dutch weave. Materials include stainless steel, brass, copper, aluminum, and other alloys, depending on corrosion resistance and design requirements. Wire diameters typically range from 1.0 mm to 5.0 mm, with aperture sizes from 2 mm to 50 mm. Mesh can be flat, rigid, or flexible, and is available in standard sheet sizes or custom panels. Surface treatments such as polishing, coating, or anodizing can be applied. Classification is based on weave type, wire thickness, and mesh opening. Products can be customized according to project needs, including size, finish, and pattern. Decorative woven mesh is used in hotels, office buildings, museums, shopping malls, and transportation facilities.

Woven Wire Mesh Specifications

• Mesh Opening Size: Mesh openings typically range from 2 mm to 50 mm, selected according to transparency, airflow, and design intent.
• Wire Diameter Range: Wire thickness generally falls between 1.0 mm and 5.0 mm, depending on strength and visual texture requirements.
• Mesh Count per Inch: Standard mesh counts range from 2 to 20 per inch, balancing structure, visibility, and aesthetics in architectural applications.
• Panel Width Options: Common widths include 1.0 m, 1.2 m, and 1.5 m, with custom sizing available to match project layouts.
• Panel Length Options: Panel lengths are typically 2.0 m, 2.4 m, and 3.0 m, and can be extended up to 6.0 m upon request.
• Material Types: Available in stainless steel (304, 316), brass, copper, aluminum, and other metals suited to different interior or exterior settings.
• Weaving Patterns: Popular styles include plain weave, twill weave, and Dutch weave, as well as customized artistic and geometric designs.
• Surface Finishes: Finishing options include brushed, polished, anodized, powder-coated, and PVC treatments for corrosion resistance and appearance.
• Open Area Percentage: Open area varies from 30% to 80%, directly influencing ventilation, lighting, and spatial perception.
• Edge Types: Edges can be supplied cut, hemmed, framed, or welded, depending on installation method and safety needs.
• Color Coating Options: Powder coating and anodizing provide options like silver, black, gold, bronze, or custom RAL colors.
• Tensile Strength Range: Tensile strength depends on material and mesh design, typically ranging from 300 MPa to 900 MPa.
• Mesh Weight per Square Meter: Unit weight ranges from 2 kg/m² to 15 kg/m², based on wire size and weave density.
• Fire Resistance Classification: Most metal decorative meshes meet Class A fire rating, supporting fire safety compliance in architectural use.
• Customization Availability: All specifications—size, shape, weave type, wire gauge, and finish—can be fully customized for design and installation needs.

Picture Display

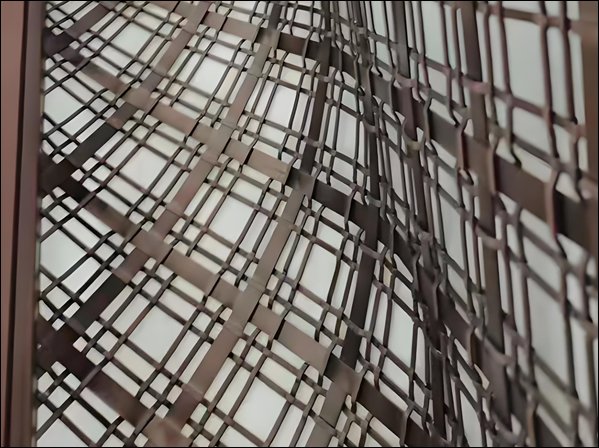

Flat Bar Decorative Woven Wire Mesh Panel for Architectural Applications

Material: Stainless steel grade SS304 or SS316
Aperture Size: 20 * 20 mm square opening
Flat Bar Size: Width 3 - 5 mm, thickness 1.5 - 2.5 mm
Weaving Method: Flat bar interlock woven structure
Panel Dimensions: 1000 * 2000 mm
Surface Treatment: Mill finish, polishing, or PVD coating
Open Area Ratio: 40 - 55%
Weight Range: 8 - 15 kg/m2 depending on thickness
Application Scope: Wall cladding, fa?ade panels, partitions
Installation Method: Frame fixing with clips or welded support

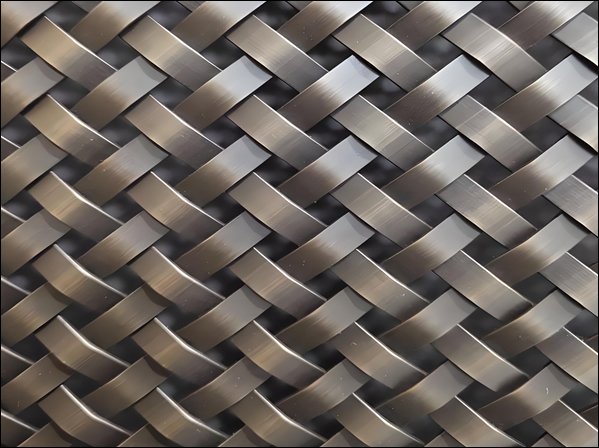

Curved Strip Woven Wire Mesh Panel for Wall Cladding and Interior Systems

Material: Stainless steel or aluminium alloy
Aperture Size: 15 * 25 mm rectangular opening
Strip Size: Width 4 - 8 mm, thickness 1.5 - 3.0 mm
Weaving Method: Curved strip overlapping woven structure
Panel Dimensions: 1200 * 2400 mm
Surface Treatment: Brushed, anodized, or powder coated
Open Area Ratio: 35 - 50%
Weight Range: 10 - 18 kg/m2
Application Scope: Interior walls, ceilings, fa?ade cladding
Installation Method: Track system or framed panel fixing

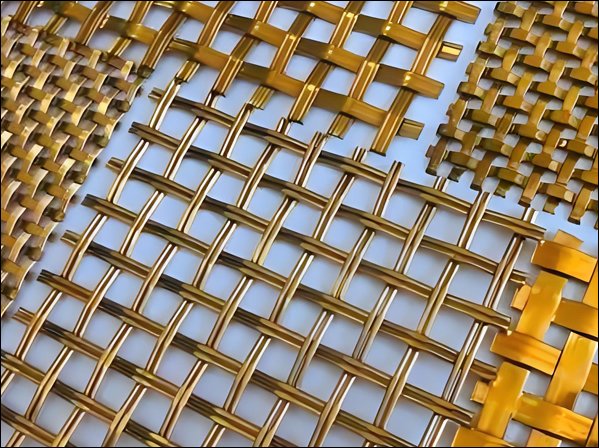

Brass Decorative Woven Wire Mesh Panel for Interior Screen and Partition Use

Material: Brass or copper alloy
Aperture Size: 10 * 20 mm rectangular opening
Wire or Strip Size: Width 2 - 4 mm, thickness 1.0 - 2.0 mm
Weaving Method: Single layer woven mesh structure
Panel Dimensions: 1000 * 2000 mm
Surface Treatment: Polished, antique finish, or coated
Open Area Ratio: Approximately 45 - 60%
Weight Range: 6 - 12 kg/m2
Application Scope: Cabinet inserts, screens, partitions
Installation Method: Frame mounting or direct fixing

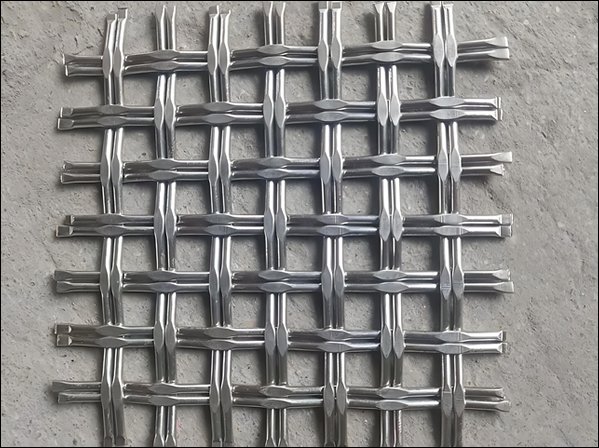

Woven Wire Mesh Panel for Interior Partition and Architectural Divider Systems

Material: Stainless steel SS304 or SS316
Aperture Size: 30 * 30 mm square opening
Flat Bar Size: Width 3 - 6 mm, thickness 2.0 - 3.5 mm
Weaving Method: Heavy duty flat bar woven structure
Panel Dimensions: 1500 * 3000 mm
Surface Treatment: Powder coating, polishing, or plating
Open Area Ratio: Approximately 30 - 45%
Weight Range: 12 - 25 kg/m2
Application Scope: Room dividers, partitions, large panels
Installation Method: Framed system with structural support

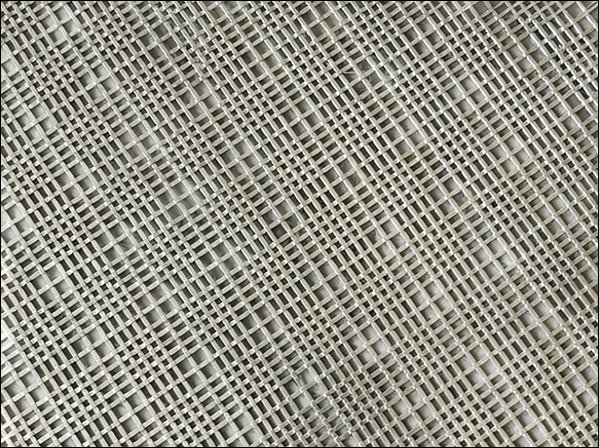

Decorative Woven Wire Mesh Panel with Crosswoven Structure for Modern Architecture

Material: Stainless steel (SS304/SS316) or aluminum alloy
Aperture Size: 5 * 5 mm or custom
Wire Diameter: 1.0 - 1.5 mm
Weaving Method: Crosswoven structure for enhanced strength
Panel Dimensions: 1000 * 2000 mm
Surface Treatment: Electro-polished, brushed
Open Area Ratio: 45 - 60%
Weight Range: 7 - 12 kg/m2 depending on wire diameter
Application Scope: Interior wall panels, partitions, facades
Installation Method: Frame-mounted, hanging, or embedded into structures

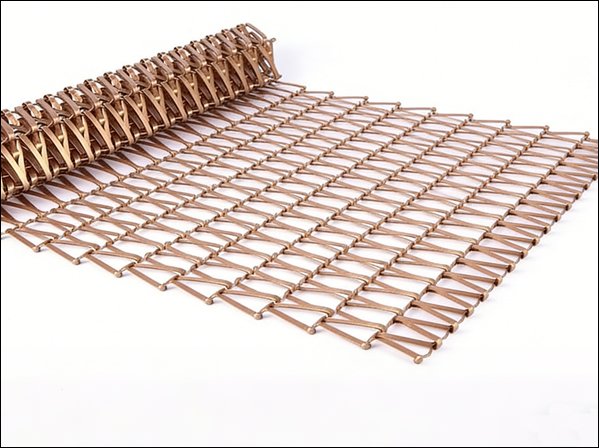

Decorative Woven Mesh Partition Panel with Interwoven Links for Modern Spaces

Material: Stainless steel, brass, or copper alloy
Aperture Size: 30 * 30 mm
Wire Diameter: 1.5 - 2.0 mm
Weaving Method: Interwoven linked wire structure
Panel Dimensions: 1000 * 2000 mm or custom
Surface Treatment: Brushed, polished, or antique finish
Open Area Ratio: 50%
Weight Range: 10 - 15 kg/m2
Application Scope: Partition systems, room dividers, ceilings
Installation Method: Suspended, framed or fixed systems

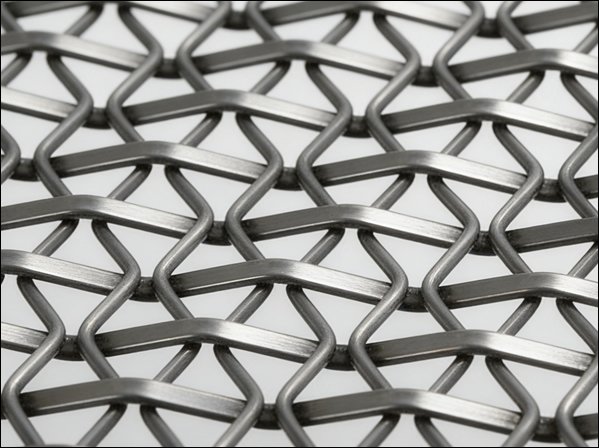

Decorative Woven Wire Mesh Panel with Twisted Link Structure for Interior Design

Material: Stainless steel SS304, SS316, or galvanized steel
Aperture Size: 20 * 20 mm square openings
Wire Diameter: 2.0 - 2.5 mm
Weaving Method: Twisted link pattern for dynamic texture
Panel Dimensions: 1200 * 2500 mm
Surface Treatment: Galvanized, brushed, or powder coated
Open Area Ratio: 45 - 55%
Weight Range: 8 - 20 kg/m2
Application Scope: Architectural features, partitions, feature walls
Installation Method: Mounting on frames, suspended installations
