Decorative Welded Mesh for Architectural and Interior Applications

Truji Architectural Decorative Mesh Co., supply decorative welded mesh made from high-quality materials such as stainless steel, mild steel, and galvanized steel, our decorative welded mesh is available in various mesh sizes and patterns to suit different aesthetic and functional needs. This mesh is commonly used in facades, partitions, and interior design elements, offering both structural integrity and aesthetic appeal. The welded construction ensures high strength and durability, making it suitable for both indoor and outdoor applications. We provide product customization and inquiry, welcome to negotiate.

Decorative Welded Mesh Specifications

• Material: Made from stainless steel, galvanized steel, or low-carbon steel.
• Wire Diameter: Ranges from 1.0 mm to 6.0 mm, commonly 2.0 mm to 4.0 mm.
• Mesh Opening Size: Apertures range from 10 mm * 10 mm to 100 mm * 100 mm.
• Mesh Shape: Available in square and rectangular openings.
• Sheet Size: Standard sizes include 1000 * 2000 mm, 1200 * 2400 mm, and 1500 * 3000 mm.
• Surface Finish: Options include polished, galvanized, or powder coated.
• Edge Style: Edges can be cut flush, bent, or framed.
• Mesh Pitch: Wire center spacing ranges from 10 mm to 100 mm.
• Weld Type: All joints are spot welded for strength.
• Color: Available in silver, black, white, grey, and other RAL colors.
• Thickness: Panel thickness ranges from 2 mm to 6 mm.
• Weight: Mesh weight is typically 2 kg/m2 to 12 kg/m2.
• Tolerance: Wire and mesh tolerances are within ±0.05 mm and ±1.0 mm.
• Coating Type: Includes zinc coating or powder coating based on use.
• Custom Size: Mesh panels can be custom-made to any size or design.

Picture Display and Description

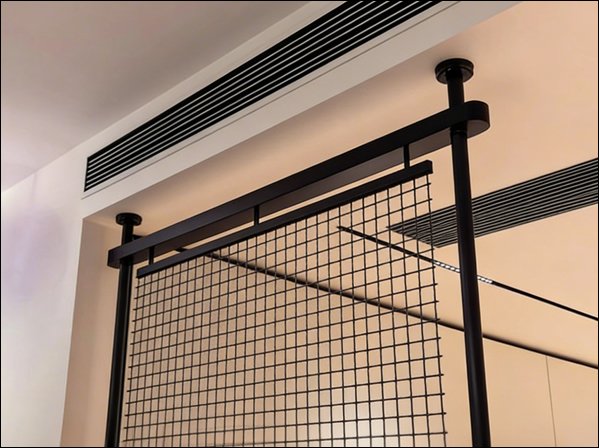

Black Powder Coated Decorative Welded Mesh Panels For Modern Interior Room Partitions

• Material: High-tensile carbon steel or galvanized steel wire.
• Wire Diameter: 3.0mm - 6.0mm. The thickness of the vertical and horizontal wires.
• Mesh Opening (Pitch): 25mm x 25mm to 50mm x 50mm. The size of the squares.
• Welding Strength: High-frequency resistance welding at every intersection for structural rigidity.
• Panel Dimensions: 1000mm x 2000mm. Standard size for indoor modular partitions.
• Surface Treatment: Electrostatic polyester powder coating in matte black.
• Edge Finish: Flush-cut edges or integrated into a 20mm steel angle frame.
• Transparency: 70% - 85% Open Area. Provides clear sightlines and airflow.
• Rigidity: Rigid panel construction that does not sag or deform under weight.
• Application: Office dividers, retail display backdrops, and residential loft partitions.

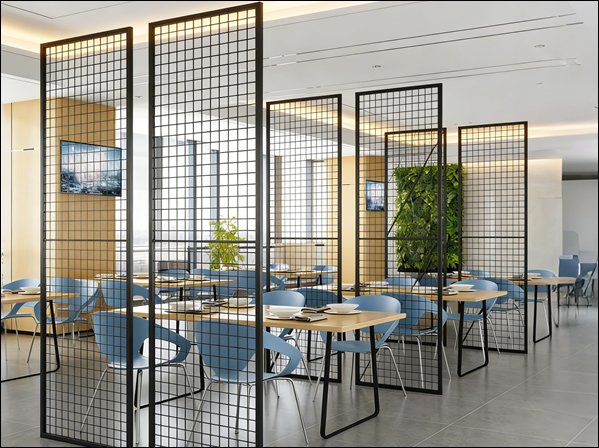

Framed Welded Wire Mesh Decorative Partitions For Open Plan Office Space Division Systems

• Material: Galvanized steel wire with a premium finish.
• Mesh Pattern: Square or rectangular grid configuration.
• Wire Thickness: 4.0mm - 5.0mm. Provides a heavy-duty, industrial aesthetic.
• Aperture Size: 50mm x 100mm. Larger rectangular openings for a minimalist look.
• Frame Specification: 25mm x 25mm square steel tubing perimeter frame.
• Color Options: Charcoal Gray, Bronze, or custom RAL colors.
• Mounting: Floor-to-ceiling tensioned posts or bolted floor flanges.
• Visibility: High transparency while physically defining separate work zones.
• Durability: Scratch-resistant coating designed for high-traffic commercial use.
• Application: Shared workspace dividers and restaurant waiting area screens.

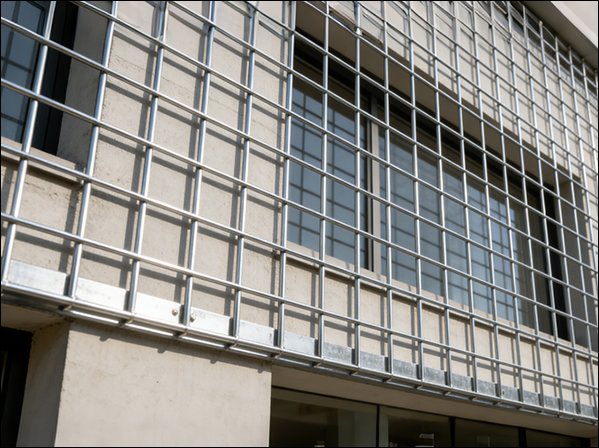

Decorative Welded Mesh Facade Panels For Commercial Building Exterior Perimeter Fencing

• Material: Hot-dip galvanized steel wire for maximum rust protection.
• Wire Diameter: 5.0mm - 8.0mm. Extra thick wire to prevent cutting or bending.
• Mesh Opening: 12.7mm x 76.2mm (358 Security Mesh). Anti-climb and anti-cut spacing.
• Panel Height: 2000mm - 3000mm. Standard heights for exterior security perimeters.
• Tensile Strength: 500 - 750 N/mm2. High resistance against forced entry.
• Finish: Dual coating (Galvanized + PVC Powder Coating) for UV resistance.
• Post System: Integrated steel I-beam or square posts with security fasteners.
• Weatherproofing: Rated for 20+ years of exposure in harsh outdoor climates.
• Installation: Modular bolt-on system for rapid perimeter deployment.
• Application: Industrial facility fencing, school perimeters, and commercial building facades.

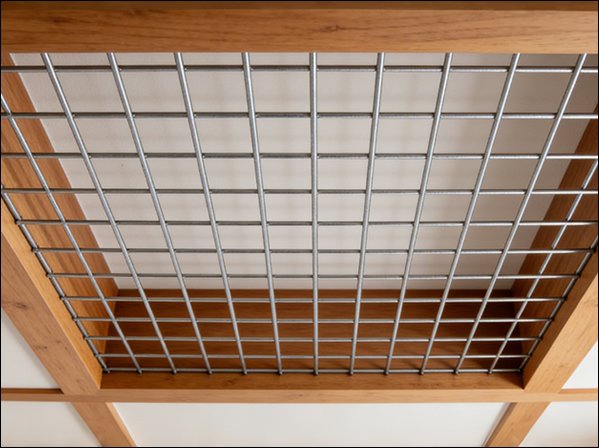

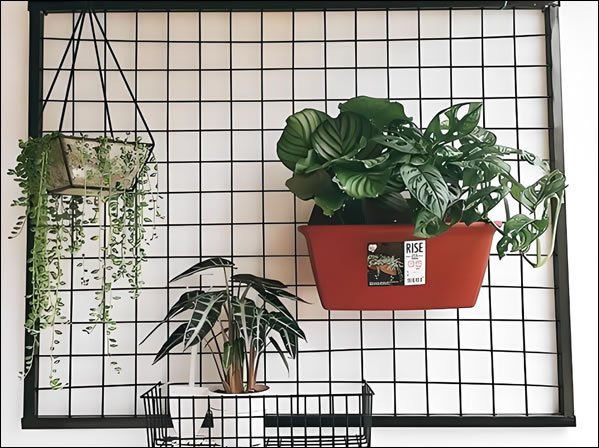

Interior Design Welded Wire Mesh Panels For Decorative Feature Wall Installations

• Material: Stainless Steel 304 or Chrome-plated carbon steel.
• Wire Diameter: 2.0mm - 4.0mm. Slimmer wire for an elegant interior finish.
• Mesh Size: 20mm x 20mm. Tight grid for a sophisticated, textured appearance.
• Surface Sheen: Bright polished or brushed satin metallic finish.
• Panel Weight: 4kg - 8kg per m2 depending on wire gauge.
• Flatness: Precision leveled panels to ensure a perfectly flat wall surface.
• Attachment: Standoff bolts or decorative "Z" clips for wall mounting.
• Backlighting: Compatible with LED strips for shadow and depth effects.
• Customization: Available in custom shapes and circular cut-outs.
• Application: Hotel lobby feature walls and luxury retail interior accents.

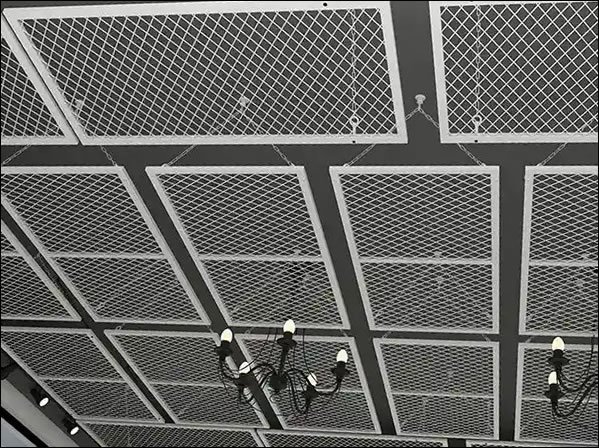

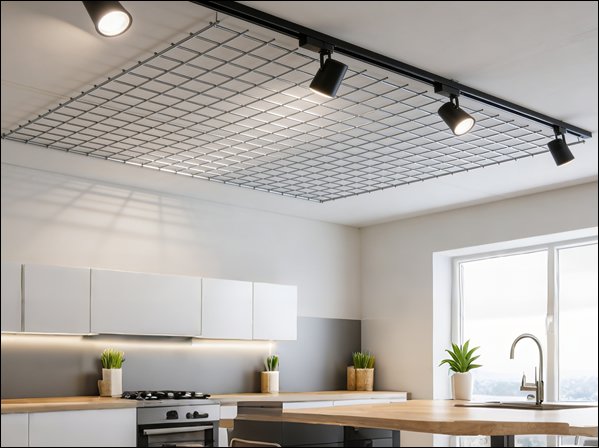

Industrial Suspended Decorative Welded Wire Mesh Ceiling Tiles For Commercial Ventilation

• Material: Lightweight pre-galvanized wire or aluminum wire.
• Tile Size: 600mm x 600mm or 600mm x 1200mm.
• Wire Diameter: 2.5mm - 3.5mm. Optimized for minimal weight.
• Mesh Opening: 15mm x 15mm to 30mm x 30mm. 5. Open Area Percentage: Over 75%. Ensures no interference with fire sprinklers.
• Finish: Powder coated White or Metallic Silver.
• System Compatibility: Standard 15/16" or 9/16" T-bar ceiling grids.
• Acoustic Options: Can be used with hanging acoustic "clouds" or baffles.
• Access: Easily removable tiles for maintenance of overhead utilities.
• Application: Modern transit hubs, airports, and open-plan offices.

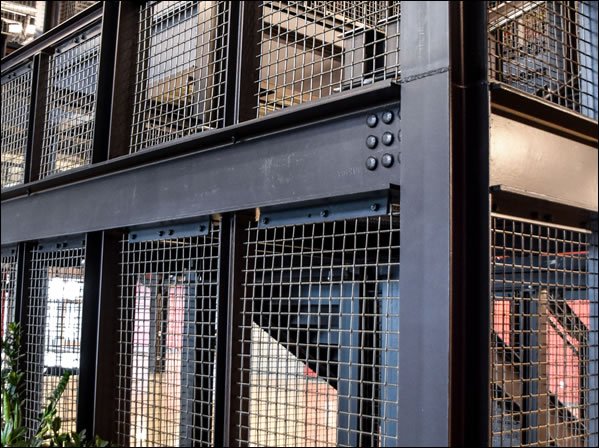

Stainless Steel Welded Wire Grid Panels For Heavy Duty Industrial Architectural Applications

• Material : Premium Grade 316 Stainless Steel for extreme durability.
• Wire Diameter: 6.0mm - 10.0mm. Very thick "rod" style wire for high loads.
• Mesh Opening: 100mm x 100mm. Large scale grid for structural use.
• Weld Integrity: Full penetration welds to handle heavy impact or weight.
• Panel Width: 1500mm - 2500mm. Sized for structural spans.
• Corrosion Resistance: Immune to saltwater and chemical exposure.
• Surface Finish: Mill finish or pickled/passivated for a clean look.
• Load Capacity: Capable of supporting climbing plants or safety equipment.
• Eco-Friendly: 100% recyclable material with a 50-year service life.
• Application: Green walls (trellis), balcony guards, and industrial safety screens.
