Cable Net Rope Mesh for Safety Netting and Bridge Barriers

Truji Architectural Decorative Mesh Co., supply cable net rope mesh, a versatile and durable solution for a variety of architectural and industrial applications. This product is primarily made from high-strength stainless steel, galvanized steel, or coated steel, offering superior corrosion resistance and long-lasting performance. Cable net rope mesh is available in different classifications, including single-layer and multi-layer mesh, and can be customized to various sizes and configurations. It is commonly used for safety netting, facade cladding, bridge barriers, and decorative applications. The mesh provides excellent load-bearing capacity, flexibility, and aesthetic appeal, making it an ideal choice for both functional and decorative purposes. We provide product customization and inquiry, welcome to negotiate.

Cable Net Rope Mesh Specifications

• Material Type: Stainless steel, galvanized steel, or coated steel.
• Wire Diameter: 1.0 mm to 6.0 mm, with common sizes of 2.0 mm, 3.0 mm, and 4.0 mm.
• Mesh Opening Size: 30 mm to 100 mm, with common sizes of 50 mm, 60 mm, and 80 mm.
• Mesh Configuration: Hexagonal, square, or diamond-shaped.
• Cable Tension: 30 kN to 60 kN.
• Load-Bearing Capacity: 200 kg to 1200 kg per square meter.
• Standard Panel Size: 1.0 m x 1.0 m to 5.0 m x 5.0 m, customizable sizes available.
• Coating Type: PVC, PVDF, or powder coating.
• Cable Type: 7x7 or 7x19 stranded steel cables.
• Aperture Shape: Hexagonal, square, or rhombic.
• Weight: 1.5 kg/m2 to 10 kg/m2.

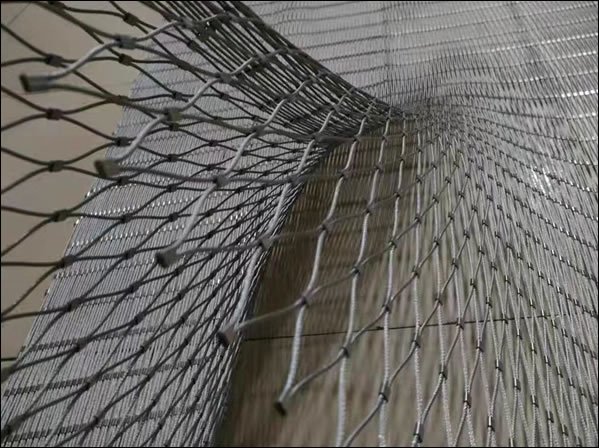

• Structural Flexibility: Adapts to curved and angled surfaces.
• Strength-to-Weight Ratio: 15 to 30 kN/m2.
• Breaking Strength: 3 kN to 10 kN per wire.
• Service Life: 10 to 50 years.

Picture Display and Description

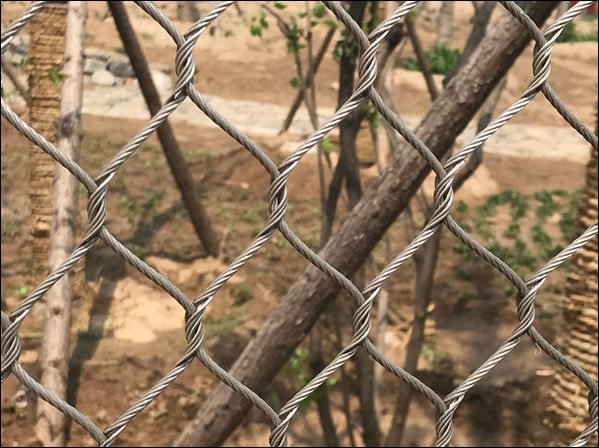

High Tensile Stainless Steel Wire Rope Net Mesh For Zoo Animal Enclosures

• Material: AISI 304 or 316 Stainless Steel.
• Cable Structure: 7x7 or 7x19 strand construction.
• Rope Diameter: 1.2mm – 4.0mm. The thickness of the steel cable.
• Mesh Aperture: 20mm x 20mm to 200mm x 200mm. The diamond opening size.
• Mesh Type: Interwoven or Ferrule (seamless sleeve) type.
• Breaking Load: High capacity designed for large animal containment.
• Surface Finish: Natural metallic luster or black oxide coating.
• Flexibility: Can be stretched over irregular, custom-shaped steel frames.
• Durability: Rated for 30+ years in outdoor environments.
• Application: Aviary netting, tiger enclosures, and primate exhibit fencing.

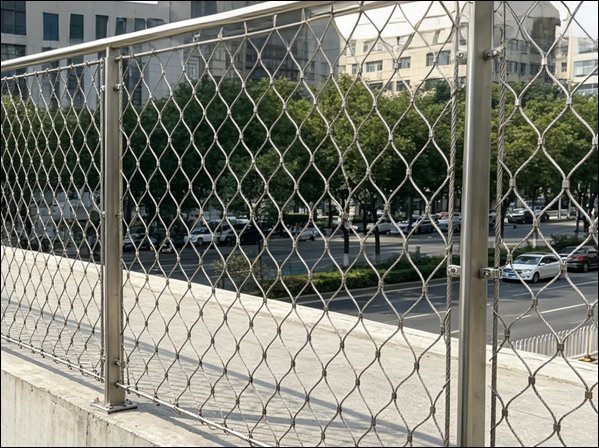

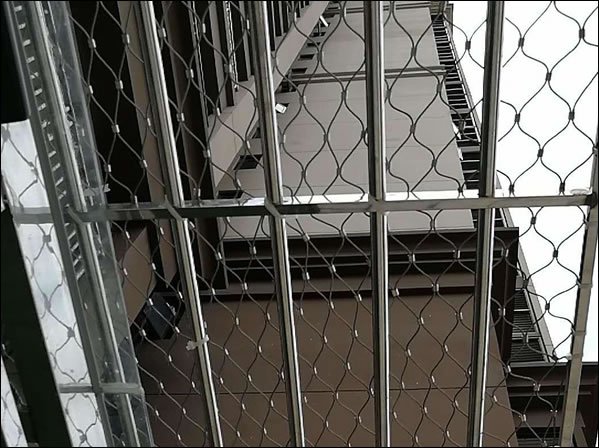

Flexible Stainless Steel Rope Mesh For Bridge Balustrade And Fall Protection Netting

• Material: Stainless Steel cable for high corrosion resistance.
• Cable Diameter: 1.5mm – 2.0mm. Standard for handrail safety infill.
• Diamond Opening: 60mm x 104mm. Sized to prevent climbing or falls.
• Mesh Angle: Standard 60-degree diamond stretch angle.
• Connection: Ferrule type with stainless steel sleeves for extra strength.
• Edge Treatment: Secured with tensioned border cables or eyelet bolts.
• Visibility: High transparency to maintain scenic views from bridges.
• Maintenance: Zero maintenance required; immune to rust and salt.
• Safety Code: Compliant with international pedestrian safety regulations.
• Application: Pedestrian bridge railings and public balcony fall protection.

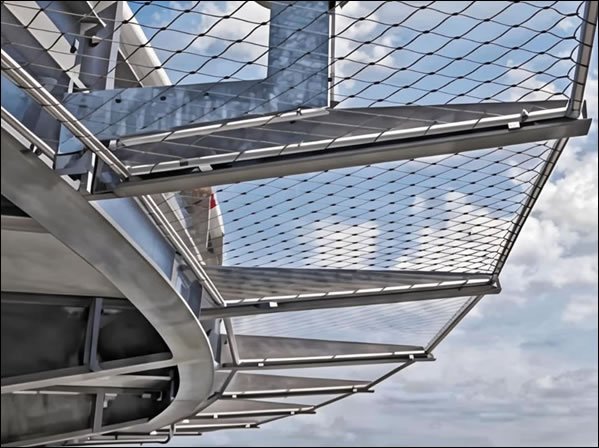

Architectural Cable Net Mesh For Modern Building Facades and Wall Trellis

• Material: 316 Stainless Steel.
• Cable Diameter: 2.0mm – 3.0mm.
• Mesh Opening: 100mm x 100mm to 300mm x 300mm.
• Structure Type: Seamless ferrule mesh for a clean, modern look.
• Finish: Brushed or polished stainless steel finish.
• Light Transmission: Over 90% Open Area. Maximizes natural light.
• Installation: Tensioned between stainless steel tubes or wall brackets.
• Application: Exterior building facades and vertical wall trellises.

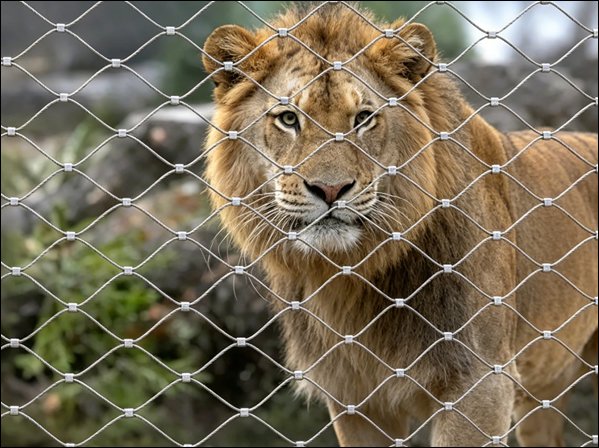

Heavy Duty Zoo Wire Rope Netting Mesh For Large Mammal Containment Systems

• Material: 316 Stainless Steel wire rope.
• Cable Diameter: 3.0mm – 4.0mm.
• Mesh Aperture: 50mm x 50mm to 120mm x 120mm.
• Weave: Hand-woven interlocking knots or high-pressure ferrules.
• Weight: 1.2kg – 2.5kg per m² depending on cable thickness.
• Tensile Strength: High resistance to chewing and clawing from predators.
• Weatherproofing: Impervious to UV rays, rain, and extreme snow.
• Visibility: Minimal visual impact for better visitor observation.
• Customization: Manufactured in large panels to reduce on-site seams.
• Application: Large cat exhibits, bear enclosures, and safari park fencing.

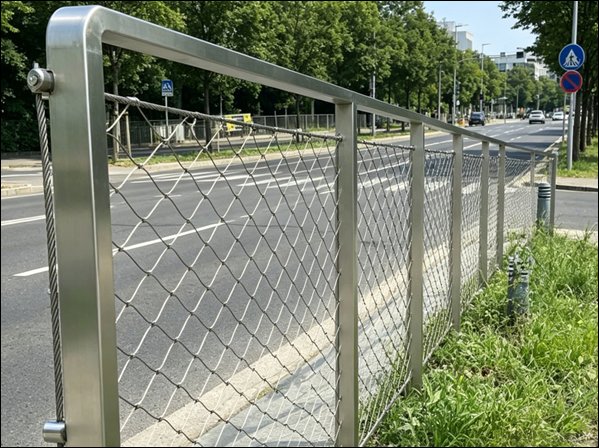

Stainless Steel Rope Mesh Fencing For Public Park And Playground Safety

• Material: AISI 304 Stainless Steel wire rope.
• Cable Diameter: 1.2mm – 1.6mm.
• Aperture Size: 25mm x 25mm to 40mm x 40mm. Small holes.
• Texture: Smooth finish with no sharp edges or wire burrs.
• Flexibility: Soft to the touch and can be shaped into tunnels.
• Safety: Anti-climb diamond pattern prevents foot placement.
• Color: Natural silver or black oxide for a non-reflective look.
• Impact Absorption: Flexible structure absorbs energy from bumps.
• Service Life: Maintenance-free for decades of public use.
• Application: Playground climbing nets and park perimeter safety fencing.

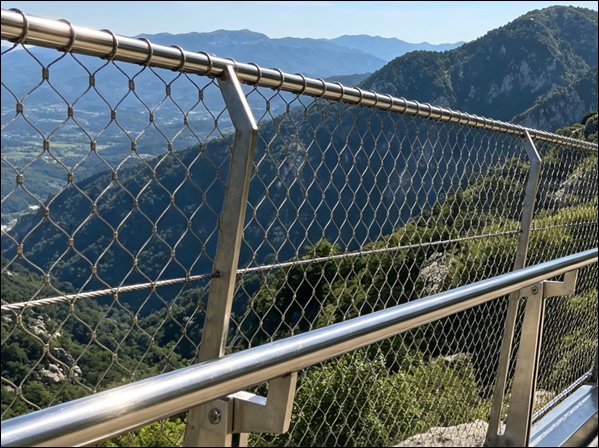

Stainless Steel Cable Rope Mesh For Safety Netting

• Material: 316 Stainless Steel for marine and offshore use.
• Cable Diameter: 2.0mm – 2.5mm.
• Mesh Opening: 100mm x 100mm.
• Frame Type: Attached to circular or rectangular stainless steel frames.
• Corrosion Resistance: High resistance to saltwater and jet fuel.
• Weight Support: Designed to catch heavy objects or personnel.
• Tensile Capacity: 5.0kN – 10.0kN per square meter.
• Finish: Natural.
• Durability: Built to withstand high-velocity wind and salt spray.
• Application: Offshore oil rig helipads and hospital roof landing zones.

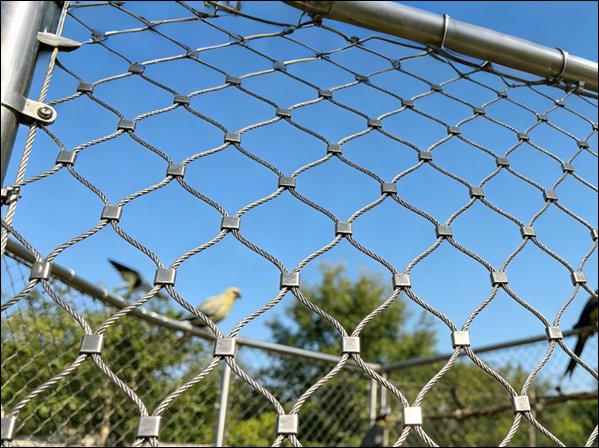

Animal Enclosures With Rope Mesh For Walk Through Aviary Design Projects

• Material: Lightweight 304 Stainless Steel cable.
• Cable Diameter: 1.0mm – 1.2mm.
• Aperture: 20mm x 20mm to 30mm x 30mm. To contain small birds.
• Transparency: Over 95% visibility. Feels like there is no cage.
• Weight: 0.4kg – 0.6kg per m² for easy ceiling suspension.
• Flexibility: Can drape over large spans without heavy supports.
• Airflow: Full ventilation for bird health and environment.
• Weather resistance: Will not rot or degrade like nylon netting.
• Safety: Soft mesh prevents injury to birds during flight.
• Application: Walk-through aviaries and butterfly house enclosures.


Cable Net Rope Mesh For Interior Architectural Staircase Void Infill Protection

• Material: 316 Stainless Steel rope.
• Cable Diameter: 1.5mm.
• Mesh Opening: 50mm x 50mm. Standard for modern stair safety.
• Connection: High-precision stainless steel ferrules.
• Tensioning: Mounted using turnbuckles and perimeter rods.
• Aesthetics: Minimalist design that complements modern decor.
• Strength: High load-bearing capacity for occupant safety.
• Cleanliness: Does not collect dust like glass or wood panels.
• Customization: Shaped to follow the angle of the staircase.
• Application: Mezzanine floor edges and open staircase void protection.

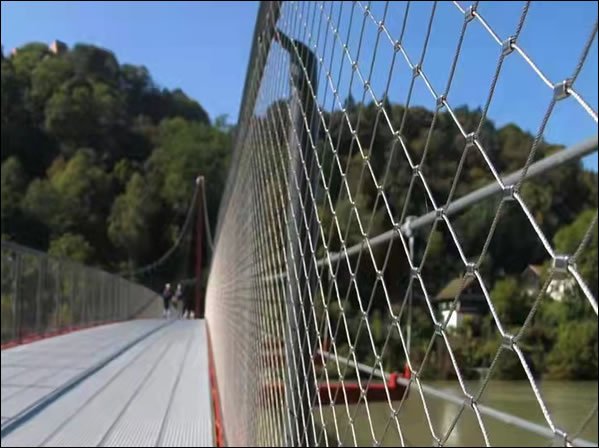

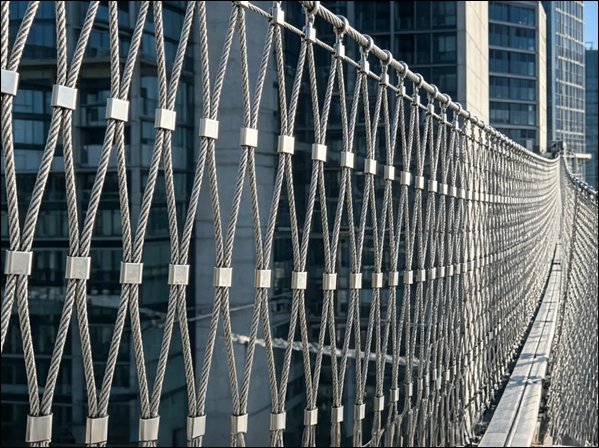

Cable Net Rope Mesh For Bridge Netting And Pedestrian Fall Safety Systems

• Material: AISI 316 Stainless Steel rope.
• Cable Diameter: 2.0mm – 3.0mm. Standard for public infrastructure.
• Diamond Size: 60mm – 120mm. Optimized for fall prevention.
• Structure: Interwoven diamond mesh for multi-directional strength.
• Service Environment: Designed for bridges, cliffs, and scenic lookouts.
• Breaking Strength: Capable of stopping a human fall safely.
• UV Resistance: Completely unaffected by long-term sun exposure.
• Visual Impact: Transparent enough to keep landscapes visible.
• Installation: Clamped to high-tension structural steel cables.
• Application: Suicide prevention netting and pedestrian bridge safety screens.
