Decorative Crimped Mesh for Facades and Dividers Applications

Truji Architectural Decorative Mesh Co., supply decorative crimped mesh, a versatile material widely used in architectural and interior design applications. This mesh is typically made from high-quality stainless steel, galvanized steel, or aluminum, offering strength and durability. The crimped design allows for a unique aesthetic while ensuring the material's structural integrity. It is commonly used in facades, partitions, ceilings, and screens, providing both functionality and visual appeal. Decorative crimped mesh is available in various sizes and finishes, making it suitable for diverse design needs. We provide product customization and inquiry, welcome to negotiate.

Decorative Crimped Mesh Specifications

• Material: Made from stainless steel, galvanized steel, or aluminum.
• Wire Diameter: From 1.0 mm to 6.0 mm, with common sizes between 2.0 mm and 3.0 mm.
• Mesh Aperture: Available in sizes from 5 mm x 5 mm to 100 mm x 100 mm, based on the design.
• Mesh Type: Offered in woven and welded types.
• Crimp Type: Includes flat, peak, and intermediate crimp.
• Panel Size: Ranges from 1000 mm x 1000 mm to 3000 mm x 5000 mm, with custom sizes upon request.
• Mesh Wire Pitch: Typically between 5 mm and 50 mm.
• Surface Treatment: Options include galvanizing, powder coating, and anodizing.
• Load Capacity: Supports from 200 to 500 kg per square meter.
• Open Area: Varies between 30% and 80%.
• Crimp Angle: Ranges from 30° to 60°.
• Length Tolerance: Typically ±2% of the total length.
• Width Tolerance: Usually ±3%.
• Finish Options: Available in matte, glossy, and satin finishes.
• Weight: Ranges from 3 kg to 15 kg per square meter.

Picture Display and Description

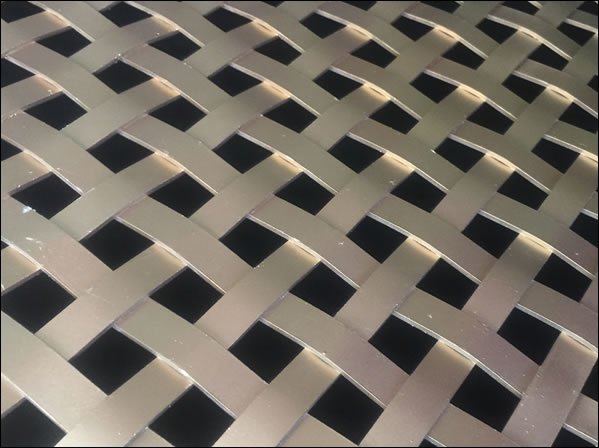

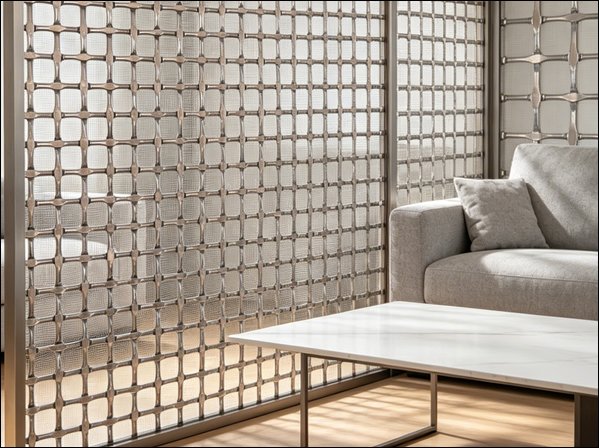

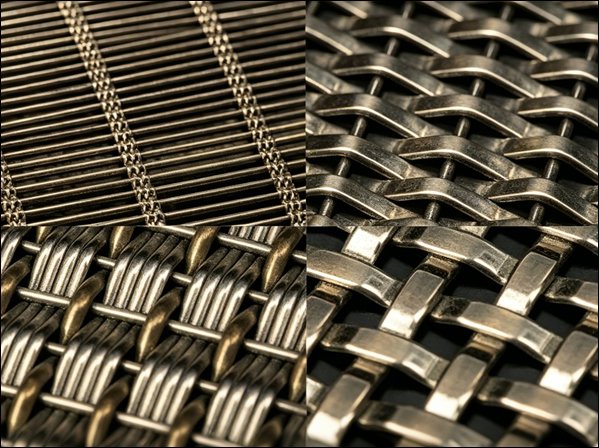

Stainless Steel Architectural Crimped Wire Mesh Panels For Modern Interior Space Partitions

• Material: Grade 304 or 316 Stainless Steel.
• Weave Style: Intermediate Crimp or Plain Weave.
• Wire Diameter: 1.0mm – 3.0mm. The thickness of the individual woven wires.
• Mesh Aperture: 5mm x 5mm to 20mm x 20mm. The size of the square openings.
• Overall Thickness: 2.0mm – 6.0mm. The depth of the textured woven panel.
• Surface Finish: Bright Polished or Satin Brushed finish.
• Edge Detail: Bound with a U-channel frame or left with raw edges.
• Flexibility: Rigid and non-flexible for structural wall stability.
• Open Area: 40% – 65%. Balanced for airflow and visual separation.
• Application: Room dividers, privacy screens, and office partitions.

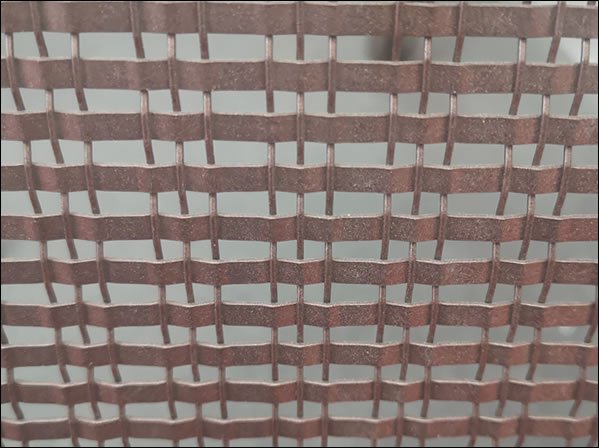

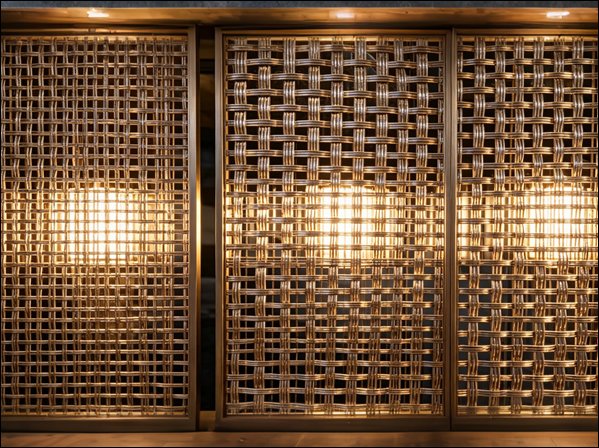

Decorative Woven Crimped Wire Mesh Partition Panels For Luxury Hotel Lobby

• Material: Brass, Bronze, or Coated Stainless Steel.
• Crimping Type: Flat-Top Crimp for a smooth, reflective surface.
• Wire Shape: Flat or Round wire combination.
• Aperture Size: 2mm – 10mm. Smaller openings for a high-density, luxury feel.
• Weight: 4.5kg – 10kg per m². Heavier weight for a premium, solid feel.
• Color Integrity: Fade-resistant gold or copper tones.
• Panel Dimensions: Up to 2.5m width. Custom sized for large-scale interiors.
• Light Reflection: High reflectivity used to enhance ambient lighting.
• Rigidity: Self-supporting when installed within a vertical frame.
• Application: Hotel reception backdrops and luxury lounge dividers.

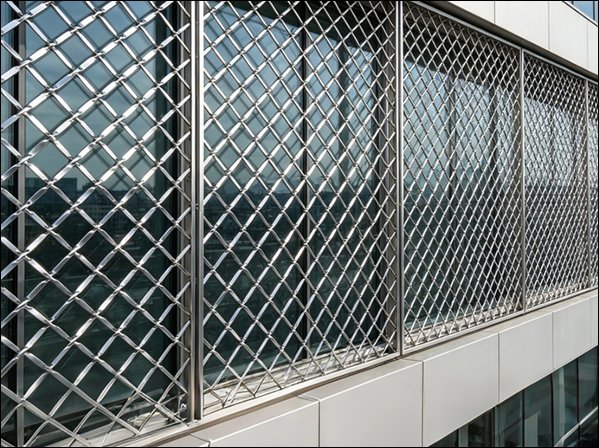

External Building Facade Decorative Crimped Mesh For Architectural Sunshade Protection

• Material: Stainless Steel for outdoor weather resistance.
• Weave Pattern: Lock Crimp to ensure wires stay in place under wind load.
• Wire Diameter: 3.0mm – 5.0mm. Thicker wire used for external durability.
• Mesh Opening: 20mm x 20mm to 50mm x 50mm. Larger holes for transparency.
• Panel Size: 1.5m x 4.0m. Large panels for building exterior coverage.
• Finish: Natural metallic finish or weather-proof coating.
• Maintenance: Self-cleaning with rain; resistant to bird nesting.
• UV Stability: 100% UV-proof metal construction.
• Installation: Tensioned cable system or rigid bolt-on frames.
• Application: Exterior building cladding, sunscreens, and parking garage skins.

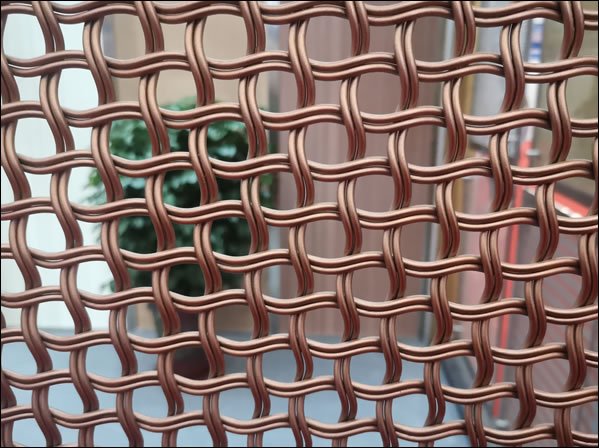

Interior Design Decorative Crimped Mesh Panels For Commercial Retail Space Accents

• Material: Aluminum or Galvanized Steel wire.
• Color Finish: Matte Black, Champagne Gold, or Rose Gold.
• Wire Gauge: 1.5mm – 2.5mm. Standard sizing for retail installations.
• Aperture Range: 10mm – 30mm. Provides a clear view of products behind the mesh.
• Thickness: 3.0mm – 5.0mm. Noticeable texture that adds depth to walls.
• Installation: Fixed via stand-off bolts for a floating effect.
• Fire Performance: Non-combustible architectural material.
• Weight-to-Strength: Lightweight aluminum reduces load on interior walls.
• Customization: Can be laser-cut into specific logos or shapes.
• Application: Retail wall displays, branding zones, and shopfitting.

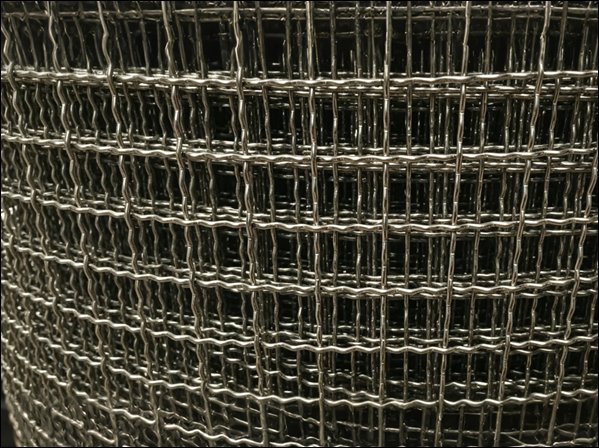

Heavy Duty Industrial Crimped Wire Mesh For Structural Safety And Security Guarding

• Material: High-Carbon Steel or Manganese Steel.
• Wire Diameter: 5.0mm – 10.0mm. Very thick "rod-like" wire.
• Mesh Opening: 50mm x 50mm to 100mm x 100mm. Large, sturdy squares.
• Weave Type: Double Crimp for maximum structural lock.
• Tensile Strength: High resistance to impact and forced entry.
• Finish: Hot-dip galvanized or mill finish.
• Rigidity: Extremely rigid; cannot be bent by hand.
• Corrosion Resistance: Protected against rust for industrial use.
• Panel Mounting: Welded directly to heavy steel angle frames.
• Application: Machinery guards, window security grilles, and warehouse cages.

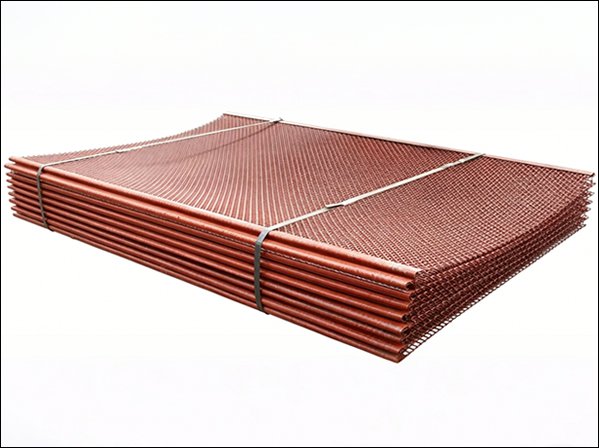

Mining Screen Crimped Wire Mesh For Industrial Material Grading And Sifting

• Material: 65Mn Steel for high wear and abrasion resistance.
• Hole Type: Square or Rectangular vibrating screen mesh.
• Wire Diameter: 2.0mm – 12.0mm. Heavy wire to withstand rock impact.
• Aperture Size: 5.0mm – 150mm. Sized for specific stone or ore grading.
• Edge Type: C-hook or U-hook edges for tensioning into machines.
• Weave Integrity: Precisely controlled spacing for accurate material sorting.
• Life Expectancy: Engineered for long-term use in high-friction environments.
• Flexibility: Semi-flexible to handle machine vibrations without breaking.
• Standard: Meets international ISO standards for industrial screening.
• Application: Rock crushers, quarrying, and mining sifting machines.

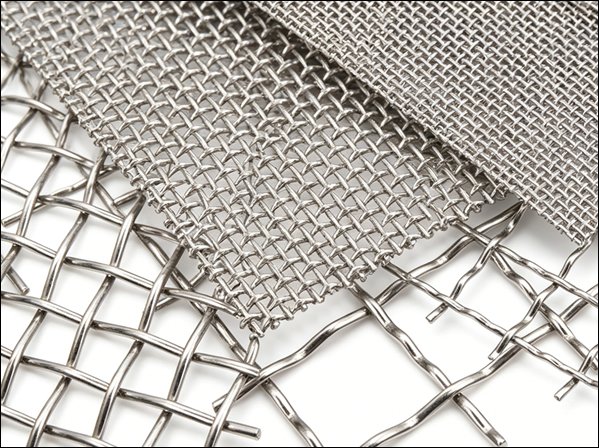

Stainless Steel Decorative Crimped Wire Mesh For Staircase Railing Infill Panels

• Material: SS316 for high-end safety.
• Wire Diameter: 2.0mm – 4.0mm. Provides a strong safety barrier.
• Aperture: 20mm x 20mm. Small enough to prevent hands from passing through.
• Weave: Flat-Top Crimp to ensure a smooth, snag-free surface.
• Transparency: 60% Open Area. Keeps the staircase feeling open and airy.
• Finish: Polished to a mirror-like or satin finish.
• Maintenance: Fingerprint resistant and easy to wipe down.
• Structural Integrity: Resists sagging over long balcony spans.
• Application: Stair balustrades, balcony railings, and mezzanine guards.

Decorative Crimped Mesh For Interior Furniture And Cabinet Inlay Design

• Material: Fine Brass or Anodized Aluminum wire.
• Wire Diameter: 0.5mm – 1.2mm. Very thin wire for delicate furniture work.
• Mesh Pattern: Herringbone or Diamond crimp weaves.
• Open Area: 15% – 30%.
• Thickness: 1.0mm – 2.0mm. Thin enough to fit into wood grooves.
• Finish: Antique Bronze, Brushed Gold, or Oil-Rubbed Black.
• Flexibility: Can be slightly bent to fit curved furniture panels.
• Aesthetics: Adds a vintage or industrial touch to cabinetry.
• Durability: Won't tear or stretch like fabric or plastic mesh.
• Application: Kitchen cabinet doors, radiator covers, and wardrobe panels.

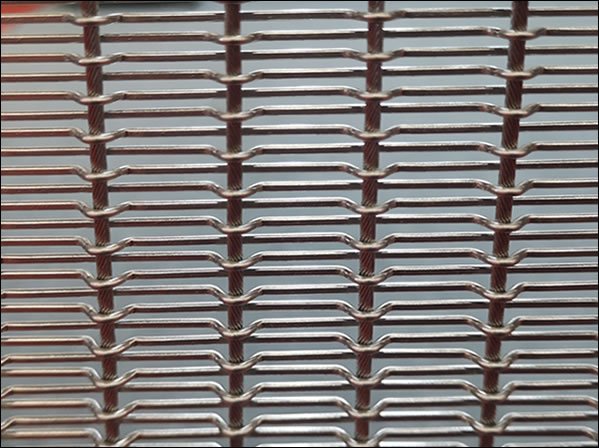

Metal Mesh Partition Panels For Industrial Style Office And Residential Room Dividers

• Material: Pre-galvanized Steel with a clear coat finish.
• Weave: Double Crimp with medium wire spacing.
• Wire Gauge: 3.0mm. Thick enough to feel solid but easy to install.
• Aperture: 40mm x 40mm. Large squares for a clean, grid-like look.
• Frame Style: Minimalist L-angle or square tube steel frame.
• Open Area: 80%. Maximum transparency for light and air.
• Industrial Aesthetic: Often left with a "raw" steel or gunmetal look.
• Portability: Can be designed as freestanding movable screens.
• Sound Diffusion: Helps break up sound waves in open-plan lofts.
• Application: Loft room dividers and modern "industrial" office zones.

Stainless Steel Crimped Mesh For High Performance Architectural Ventilation Grilles

• Material: Stainless Steel 304 (Food and Medical Grade).
• Wire Diameter: 1.0mm – 2.0mm. Thin wires for high airflow efficiency.
• Mesh Aperture: 2mm – 5mm. Very small holes to block debris or insects.
• Open Area: Over 70%. Minimal resistance to HVAC air movement.
• Finish: Electrolytic Polished for a hygienic, easy-clean surface.
• Corrosion: Rust-proof even in high-moisture kitchen environments.
• Rigidity: Pre-crimped wires prevent the mesh from vibrating in the wind.
• Installation: Sized to fit standard HVAC duct openings.
• Temperature Range: Withstands high heat from exhaust systems.
• Application: Air conditioning vents, kitchen hoods, and soffit vents.
