Metal Mesh Curtain for Architectural and Interior Design: Space Separation, Ceiling Decoration, and Building Facades

Truji Architectural Decorative Mesh Co., supply metal mesh curtain, which is used for interior partitions, ceiling decoration, and façade applications. Metal mesh curtains are classified into coil mesh, chain link mesh, ring mesh, and scale mesh types. They are commonly made from stainless steel, aluminum, copper, or brass, offering strength, corrosion resistance, and long service life. Key features include fire resistance, airflow, light transmission, and flexible installation options. We provide product customization and inquiry, welcome to negotiate.

Metal Mesh Curtain Specifications

• Materials: Stainless steel (304, 316), aluminum, brass, copper, and galvanized steel are used.
• Curtain Types: Choose from coil mesh, chain link, ring mesh, scale mesh, cable mesh, woven mesh, and perforated mesh.
• Wire Diameter: Ranges from 0.5 mm to 3.0 mm. Custom sizes are available.
• Mesh Opening (Aperture): Typically 3 mm to 20 mm, adjustable to your design needs.
• Width: Standard widths are 1 m to 3 m. Wider options are custom-made.
• Length: Standard lengths are 2 m to 10 m. Longer options are custom-made.
• Weight: Varies from 2 kg/m² to 12 kg/m², depending on mesh type and wire thickness.
• Open Area: Usually 40% to 85%, affecting light and airflow.
• Surface Finish: Available in polished, brushed, anodized, powder-coated, and electroplated.
• Colors: Common options include silver, gold, bronze, copper, and black. Custom RAL colors are also available.
• Fire Resistance: Meets A1 (non-combustible) or A2 (limited combustibility) fire ratings.
• Corrosion Resistance: High resistance, especially 304 and 316 stainless steel, for humid or outdoor use.
• Tensile Strength: Ranges from 500 MPa to 1100 MPa, depending on material and mesh type.
• Operating Temperature: Works from -30°C to 250°C without deforming.
• Customization: Custom shapes and patterns like wave, spiral, flat, and interlocking designs are available.
• Installation: Common methods include sliding tracks, fixed panels, tensioning, and suspension systems.

Picture Display and Description

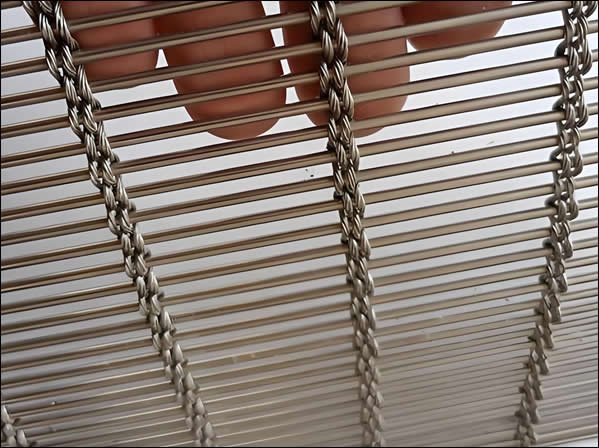

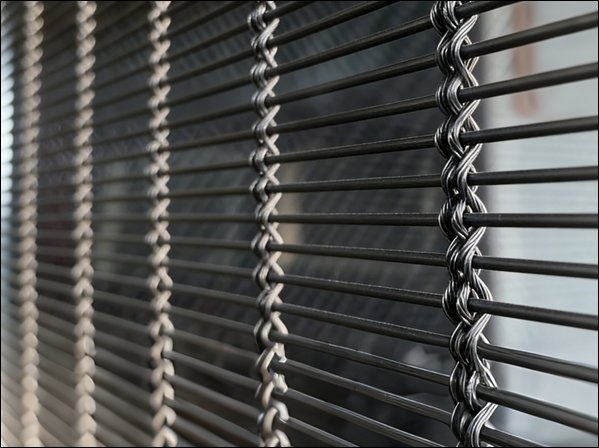

Metal Mesh Curtain Panel with Horizontal Rod and Spiral Wire Structure for Architectural Interior Applications

Material: Stainless steel SS304 or SS316
Wire Diameter: 1.0 - 2.0 mm spiral wire
Rod Diameter: 2.0 - 4.0 mm horizontal rods
Aperture Size: 10 * 20 mm
Weaving Method: Rod and spiral wire interlock structure
Panel Dimensions: Custom width and height available
Surface Treatment: Brushed, Polished
Open Area Ratio: 40 - 60%
Application Scope: Interior partitions, facade screening, ceilings
Installation Method: Track system or rod suspension

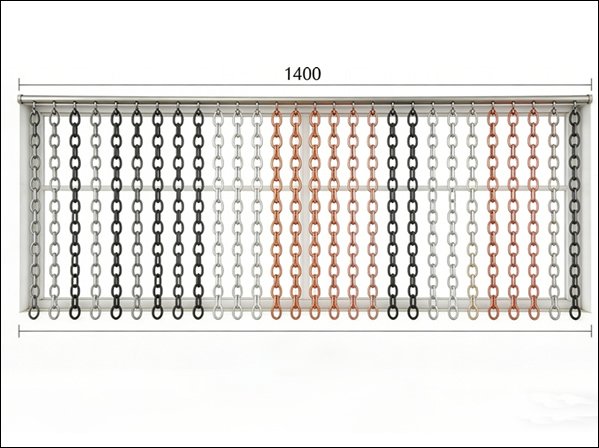

Chain Link Metal Mesh Curtain Panel with Track Mounted System for Interior Partition and Space Division Applications

Material: Aluminium alloy or stainless steel
Wire Diameter: 1.2 - 2.0 mm
Aperture Size: 12 * 24 mm
Weaving Method: Chain link interwoven structure
Panel Width: 1400 mm (shown) or custom
Surface Treatment: Anodized, powder coated, or plated
Open Area Ratio: 50 - 70%
Weight Range: 5 - 10 kg/m2
Application Scope: Room dividers, window curtains, decorative panels
Installation Method: Top rail track with sliding hooks

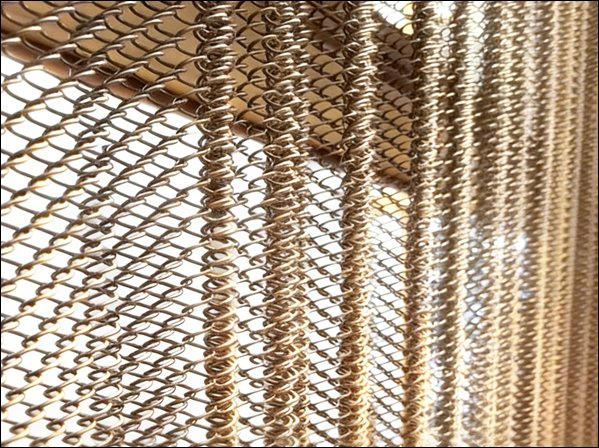

Metal Mesh Curtain Drapes with Flexible Coil Wire Structure for Interior Decorative Screening and Partition Systems

Material: Stainless steel, copper, or brass
Wire Diameter: 0.8 - 1.5 mm
Coil Pitch: 3 - 8 mm
Aperture Size: Flexible mesh spacing
Weaving Method: Spiral coil woven mesh structure
Panel Dimensions: Custom roll width and length
Surface Treatment: Polished, plated, or oxidized finish
Open Area Ratio: 60 - 80%
Application Scope: Curtains, decorative screens, ceiling panels
Installation Method: Curtain track or rod suspension

Metal Mesh Curtain with Diamond Pattern Structure for Architectural Window Screening and Interior Partition Applications

Material: Stainless steel or aluminum
Wire Diameter: 1.5 - 3.0 mm
Aperture Size: 20 * 40 mm diamond opening
Weaving Method: Expanded or woven diamond structure
Panel Dimensions: Custom sizes available
Surface Treatment: Powder coating or anodizing
Open Area Ratio: 50 - 65%
Weight Range: 8 - 15 kg/m2
Application Scope: Window screening, fa?ade shading, partitions
Installation Method: Sliding rail or fixed frame

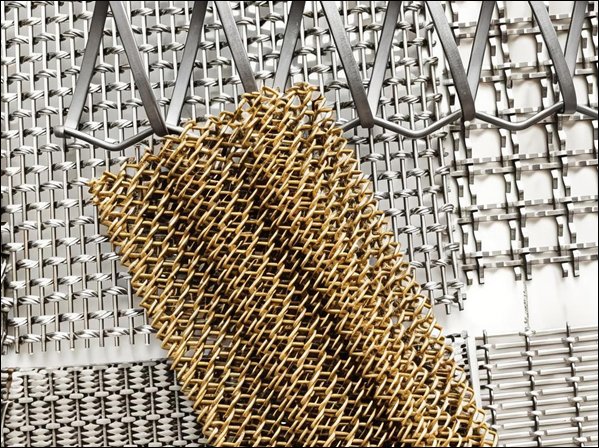

Mixed Pattern Metal Mesh Curtain Samples with Multiple Weaving Structures for Architectural Design and Interior Decoration Applications

Material: Stainless steel, brass, aluminum
Wire Diameter: 0.8 - 3.0 mm range
Aperture Size: Various custom openings
Weaving Method: Multiple woven and interlock structures
Panel Dimensions: Sample panels and custom sheets
Surface Treatment: Polished, brushed, plated finishes
Open Area Ratio: 30 - 70% depending on pattern
Weight Range: 5 - 20 kg/m2
Application Scope: Design selection, fa?ade, interior decoration
Installation Method:Depends on mesh type and structure

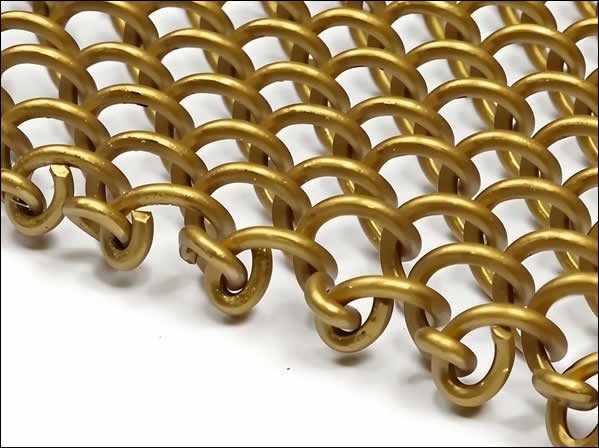

Ring Type Metal Mesh Curtain Panel with Interlinked Circular Wire Structure for Decorative Interior and Partition Applications

Material: Aluminum, stainless steel, or brass
Ring Diameter: 6 - 12 mm
Wire Diameter: 1.0 - 2.0 mm
Aperture Size: Dependent on ring size
Weaving Method: Interlinked ring mesh structure
Panel Dimensions: Custom width and drop length
Surface Treatment: Anodized, plated, or painted
Open Area Ratio: 60 - 80%
Application Scope: Curtains, partitions, decorative screens
Installation Method: Hook suspension or rail system

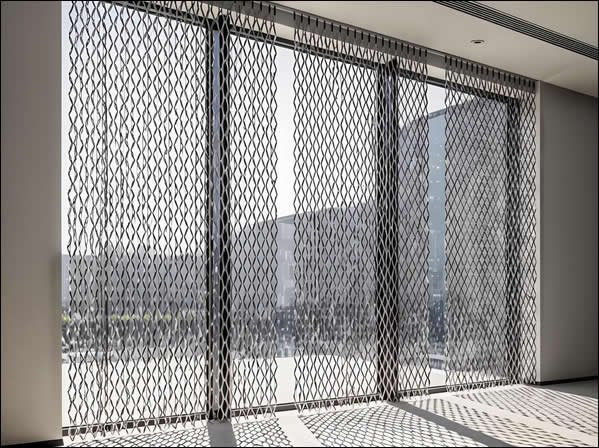

Metal Mesh Curtain Installed as Interior Partition System for Large Glass Wall Openings and Architectural Space Division Applications

Material: Stainless steel or aluminum alloy
Wire Diameter: 1.5 - 3.0 mm
Aperture Size: 20 - 50 mm range
Weaving Method: Flexible woven mesh structure
Panel Dimensions: Full height curtain panels
Surface Treatment: Powder coated or anodized
Open Area Ratio: 50 - 70%
Weight Range: 10 - 18 kg/m2
Application Scope: Glass wall partitions, interior zoning
Installation Method: Ceiling-mounted track system

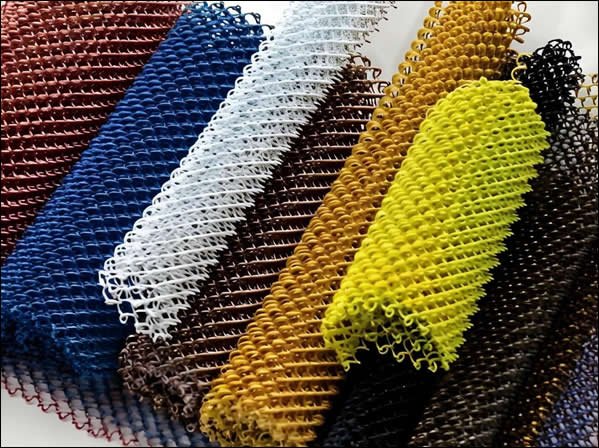

Color Coated Metal Mesh Curtain Panels with Flexible Structure for Interior Decoration and Architectural Design Applications

Material: Aluminum or stainless steel
Wire Diameter: 0.8 - 2.0 mm
Aperture Size: 5 - 20 mm
Weaving Method: Flexible woven or chain link structure
Panel Dimensions: Roll form or custom panels
Surface Treatment: Powder coating in multiple colors
Open Area Ratio: 50 - 75%
Weight Range: 4 - 12 kg/m2
Application Scope: Interior decoration, retail display, partitions
Installation Method: Track, rod, or hook mounting systems
