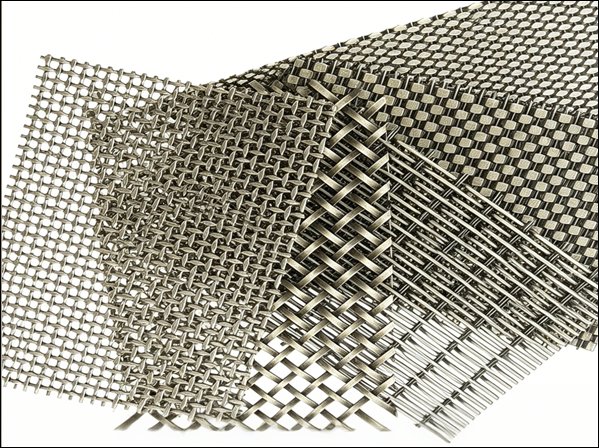

Architectural Decorative Woven Wire Mesh in Stainless Steel, Aluminum, and Brass for Facade Applications
Truji Architectural Mesh Co. offers customized production to match client-specified dimensions, materials, and finishes. Products can be tailored to project requirements for design, performance, and installation method. Designs can be developed according to customer drawings or samples. Decorative Woven Wire Mesh is composed of interlaced metal wires forming regular patterns such as square, rectangular, or diagonal openings. It is typically made from stainless steel, aluminum, or brass, and produced through weaving techniques including plain weave, twill weave, and Dutch weave. The mesh is used for interior and exterior architectural applications, including wall cladding, space dividers, ceiling panels, railing infill, and facade coverings. It can serve both functional and decorative roles, such as providing ventilation, light control, and partial visual separation. Classification is based on structure (weaving pattern, wire thickness, and aperture size) and intended use (interior partitions, exterior shading, or protective coverings). Mesh opening sizes usually range from 2 mm to 50 mm, and wire diameters from 1 mm to 6 mm. Various specifications are available for export to suit building codes and installation preferences in different markets. Welcome to contact us for cooperation and product inquiry.
Decorative Woven Wire Mesh Standard Type
- Plain Weave Wire Mesh
- Twill Weave Wire Mesh
- Dutch Weave Wire Mesh
- Crimped Woven Wire Mesh
- Lock Crimp Wire Mesh
- Intercrimp Wire Mesh
- Flat Top Crimp Wire Mesh
- Cable Rod Woven Mesh
Facade Woven Wire Fabric Specifications
- Material: Stainless steel, aluminum, galvanized steel.
- Wire Diameter: 0.5 mm to 3.0 mm.
- Mesh Aperture: 5 mm x 5 mm to 50 mm x 50 mm.
- Mesh Type: Plain, twill, satin weave.
- Mesh Thickness: 1.0 mm to 5.0 mm.
- Panel Size: 1000 mm x 1000 mm to 3000 mm x 6000 mm.
- Weight: 2.5 kg/m2 to 15 kg/m2.
- Open Area: 30% to 85%.
- Finish: Natural, anodized, powder-coated.
- Corrosion Resistance: Corrosion-resistant, especially stainless steel and aluminum.
- Fire Resistance: Fire-resistant, especially stainless steel.
- UV Resistance: Resistant to UV radiation.
- Tensile Strength: 400 MPa to 700 MPa.
- Temperature Range: -40°C to 400°C.
- Installation: Frame attachment, curtain wall, or suspension.
Picture Display and Description

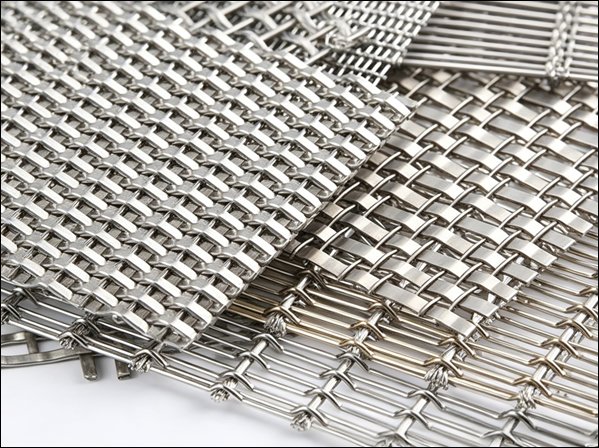

Decorative Woven Wire Mesh Panels for Interior Wall Screens and Cabinet Inserts
- Material: Stainless steel, brass, copper
- Weave Type: Crimped woven mesh
- Wire Diameter: 1.0–3.0 mm
- Aperture Size: 5–20 mm
- Panel Size: 600×1200 mm to 1500×3000 mm
- Open Area: 30%–60%
- Surface Finish: Brushed, plated
- Color: Copper, gold, brown
- Installation: Frame mounted panels
- Application: Wall screens, cabinet inserts

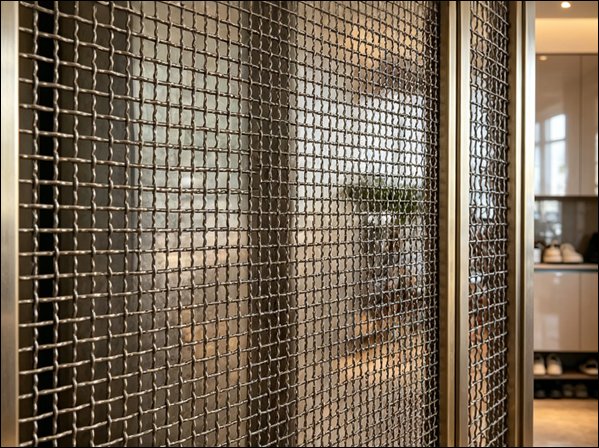

Crimped Woven Wire Mesh Panels for Interior Partition and Decorative Screen Applications
- Material: Stainless steel, carbon steel
- Weave Type: Double crimp weave
- Wire Diameter: 0.8–2.5 mm
- Aperture Size: 3–15 mm
- Panel Size: 800×2000 mm to 1500×3000 mm
- Open Area: 35%–65%
- Surface Finish: Polished, powder coated
- Color: Silver, black
- Installation: Track or frame system
- Application: Partition screens, room dividers

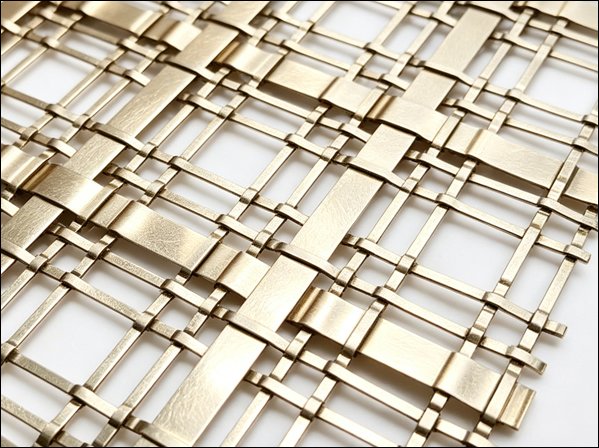

Decorative Crimped Wire Mesh Sheets for Architectural Panels and Interior Design Systems
- Material: Stainless steel, brass
- Weave Type: Flat crimp weave
- Wire Diameter: 1.0–2.5 mm
- Aperture Size: 4–12 mm
- Sheet Size: 500×1000 mm to 1200×2400 mm
- Open Area: 30%–55%
- Surface Finish: Brushed, anodized
- Color: Gold, silver
- Installation: Frame fixing
- Application: Wall panels, decorative sheets

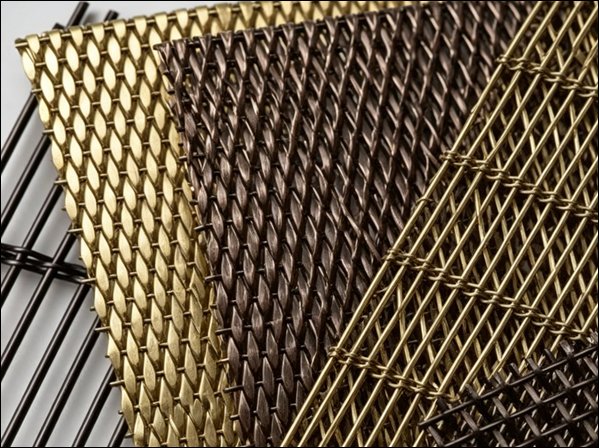

Architectural Woven Wire Mesh Panels for Facade Cladding and Interior Decoration Systems
- Material: Stainless steel, aluminum, brass
- Weave Type: Spiral or woven pattern
- Wire Diameter: 1.5–4.0 mm
- Aperture Size: 6–25 mm
- Panel Size: 1000×2000 mm to 2000×4000 mm
- Open Area: 40%–70%
- Surface Finish: Anodized, plated
- Color: Bronze, gold, black
- Installation: Cable or frame system
- Application: Facade cladding, ceilings
Metal Wire Rope Mesh Curtains for Window Covering and Interior Decorative Applications
- Material: Stainless steel 304, 316
- Structure: Rope woven mesh
- Wire Diameter: 1.0–2.5 mm
- Mesh Opening: 20×20 mm to 80×80 mm
- Panel Width: 500–1500 mm
- Panel Height: 2000–5000 mm
- Transparency: 50%–85%
- Surface Finish: Natural, oxidized
- Installation: Curtain rod or cable
- Application: Window curtains, partitions
Decorative Architectural Wire Mesh Sheets for Wall Panels and Ceiling Design Applications
- Material: Stainless steel, aluminum, brass
- Weave Type: Plain weave, twill weave, or crimped weave
- Wire Diameter: 0.8–3.5 mm
- Aperture Size: 2–20 mm
- Sheet Size: 600×1200 mm to 1500×3000 mm
- Open Area: 30%–65%
- Surface Finish: Polished, brushed, plated
- Color: Silver, gold, bronze
- Installation: Frame or suspended system
- Application: Wall panels, ceiling decoration
Architectural Woven Wire Mesh Panels for Facade Cladding and Interior Screen Systems
- Material: Stainless steel 304, 316, aluminum
- Weave Type: Flat wire weave, rod woven structure
- Wire Diameter: 1.0–3.0 mm
- Rod Diameter: 2.0–5.0 mm
- Aperture Size: 5–25 mm
- Panel Size: 1000×2000 mm to 2000×4000 mm
- Open Area: 35%–65%
- Surface Finish: Polished, brushed, plated
- Color: Silver, gold, metallic
- Application: Facade cladding, partitions, ceiling panels
