Facade Mesh Cladding for Parking Structures, Stadiums, and Industrial Facilities

Truji Architectural Decorative Mesh Co. supplies facade mesh cladding, a functional and decorative architectural element used for building exteriors. Facade mesh cladding is classified into woven wire mesh, expanded metal mesh, perforated metal panels, and welded mesh types, each offering different visual and structural characteristics. It is manufactured from durable materials such as stainless steel, aluminum, galvanized steel, and copper, depending on the application needs. The key features of facade mesh cladding include ventilation, solar shading, privacy, corrosion resistance, and enhanced building appearance. This product is commonly applied in commercial buildings, parking structures, stadiums, and industrial facilities. We provide product customization and inquiry, welcome to negotiate.

Facade Mesh Cladding Specifications

• Material: Stainless steel, aluminum, galvanized steel, copper, and brass.
• Mesh Type: Woven mesh, expanded mesh, perforated panels, and welded mesh.
• Wire Diameter: Ranges from 1.0 mm to 5.0 mm.
• Opening Size: From 5 mm x 5 mm to 100 mm x 100 mm.
• Panel Size: Common sizes are 1000 x 2000 mm, 1200 x 2400 mm, and 1500 x 3000 mm.
• Thickness: From 0.8 mm to 5.0 mm.
• Weight: Between 2 kg/m2 and 15 kg/m2 depending on material and type.
• Open Area: Ranges from 30% to 75%.
• Surface Finish: Powder coated, anodized, galvanized, or polished.
• Color: Silver, black, bronze, champagne, or custom RAL colors.
• Strength: Tensile strength from 500 MPa to 800 MPa (woven mesh).
• Height Limit: Suitable for facades up to 30 meters high or more.
• Installation: Using clamps, frames, bolts, or tension cables.
• Light Transmission: Allows 20% to 70% light through depending on mesh type.
• Fire Resistance: Non-combustible; meets A1 fire safety standards.

Picture Display and Description

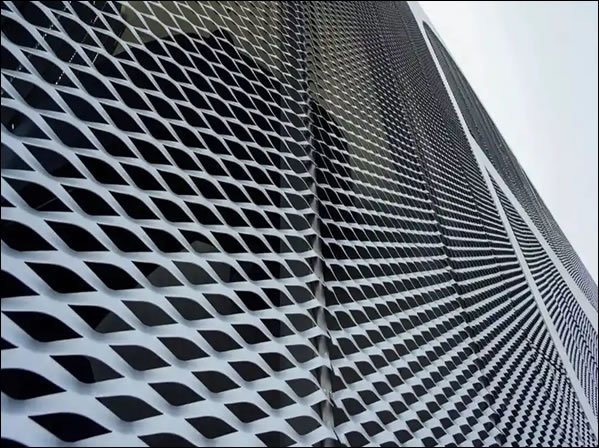

Expanded Metal Facade Mesh Panels for Building Wall Cladding Systems

• Material: Aluminum, stainless steel, galvanized steel
• Surface Treatment: Powder coating, PVDF coating, anodizing
• Hole Shape: Diamond expanded openings
• Hole Size: 10×20 mm to 50×100 mm
• Thickness: 1.0–4.0 mm
• Panel Size: 1000×2000 mm, 1220×2440 mm
• Open Area: 30%–70%
• Color: White, grey, black
• Installation: Frame fixing, bolt connection
• Application: Facade cladding, ventilation walls

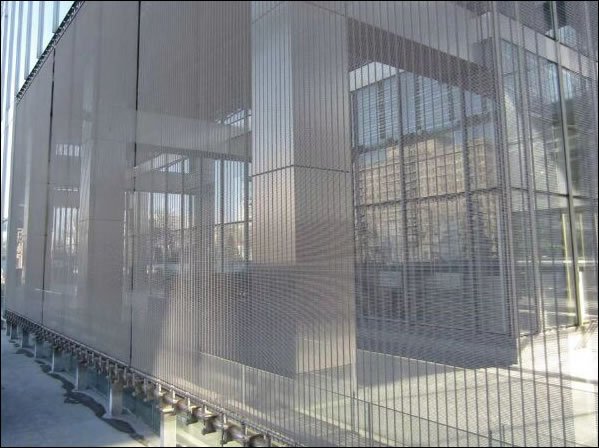

Cable Wire Mesh Curtain Systems for Glass Building Facade Enclosures

• Material: Stainless steel 304, 316
• Wire Diameter: 1.0–3.0 mm
• Cable Structure: Woven rope mesh
• Mesh Opening: 20×20 mm to 100×100 mm
• Panel Size: Custom width and height
• Transparency: 50%–90%
• Surface: Natural, oxidized finish
• Edge Type: Ferrule or knotted
• Installation: Cable tension system
• Application: Curtain facade, safety enclosure

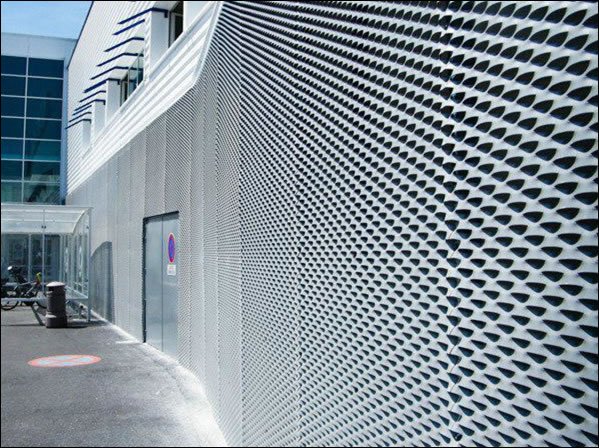

Exterior Expanded Metal Mesh Cladding Panels for Architectural Wall

• Material: Aluminum, mild steel
• Surface Treatment: Powder coating, anodizing
• Hole Shape: Diamond expanded mesh
• Hole Size: 15×30 mm to 60×120 mm
• Thickness: 1.5–5.0 mm
• Panel Size: 1000×2000 mm, 1500×3000 mm
• Open Area: 40%–80%
• Color: Silver, grey, black
• Installation: Frame-mounted panels
• Application: Exterior walls, sunshade cladding

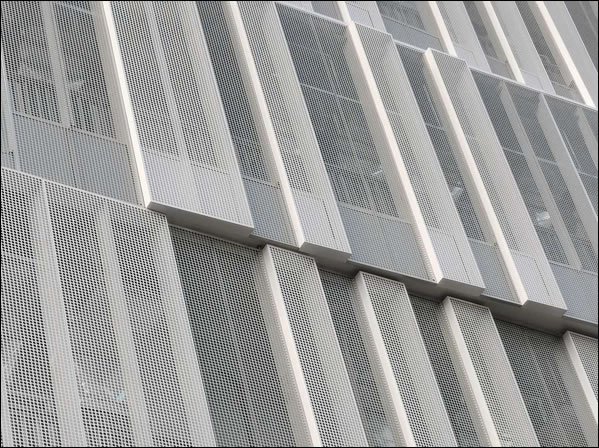

Perforated Metal Facade Panels for Building Envelope Ventilation and Screening Systems

• Material: Aluminum, stainless steel, galvanized steel
• Surface Treatment: Powder coating
• Hole Shape: Round perforation
• Hole Diameter: 1.0–10.0 mm
• Thickness: 0.8–3.0 mm
• Panel Size: 1000×2000 mm, 1220×2440 mm
• Open Area: 20%–60%
• Color: White, grey, black
• Installation: Cassette panel system
• Application: Facade screening, airflow panels

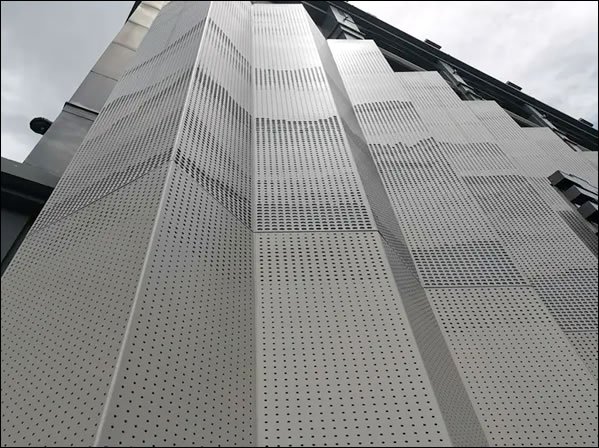

Perforated Aluminum Wall Cladding Panels for High Rise Building Facade Systems

• Material: Aluminum sheet
• Surface Treatment: PVDF coating, powder coating
• Hole Shape: Round perforated holes
• Hole Diameter: 2.0–8.0 mm
• Thickness: 1.5–4.0 mm
• Panel Size: 1200×2400 mm, 1500×3000 mm
• Open Area: 30%–50%
• Color: White, silver, grey
• Installation: Cassette or frame fixing
• Application: High-rise facade cladding

Expanded Metal Mesh Panels for Exterior Building Facade Cladding and Screening

• Material: Aluminum, stainless steel
• Surface Treatment: Powder coating, anodizing
• Hole Shape: Diamond expanded openings
• Hole Size: 20×40 mm to 80×160 mm
• Thickness: 2.0–6.0 mm
• Panel Size: 1000×2000 mm, custom sizes
• Open Area: 50%–85%
• Color: Black, grey, metallic
• Installation: Frame support system
• Application: Facade cladding, sunshade screening
