Decorative Metal Wire Mesh Coil Drapery Curtain for Office Open Space Partition

Truji Architectural Mesh Co. manufactures Metal Mesh Coil Drapery products, which are used in architectural spaces for partitions, window treatments, ceilings, and decorative elements. These mesh curtains are made from interlocked metal coils and are commonly installed using track systems, hooks, or tension wires. They are suitable for interior and exterior applications in hotels, malls, office buildings, and public venues. Coil mesh drapery can be customized in coil diameter, wire thickness, height, and width based on project requirements. Surface treatments include anodizing, powder coating, and metallic finishes in various colors. Common classifications include flat wire coil drapery and round wire coil drapery. Export specifications can be adjusted for regional standards or performance demands. We offer custom manufacturing and support engineering designs and installation needs. Welcome to contact us to establish business cooperation.

Metal Coil Drapery Specifications

• Coil Wire Diameter: Typically ranges from 0.5 mm to 2.0 mm, chosen for flexibility, strength, and design needs in curtain or divider applications.
• Opening Size Between Coils: Ranges from 3 mm to 20 mm, offering different levels of visibility, airflow, and privacy based on project use.
• Coil Pitch (Spacing): Coil pitch varies from 3 mm to 25 mm, affecting mesh tightness, texture, and light transmission.
• Mesh Height (Drop Length): Standard height is 0.5 m to 6.0 m, suitable for large feature walls, curtains, or architectural partitions.
• Mesh Width (Panel Width): Panels are 0.5 m to 3.0 m wide, customizable for ceiling covers, backdrops, or curved surfaces.
• Material Types: Available in stainless steel, aluminum, or brass, selected for corrosion resistance, weight, and color tone.
• Surface Finishes: Options include anodizing, powder coating, brushed, or PVDF finishes, used for both interior and exterior designs.
• Color Options: Standard and custom colors like silver, gold, bronze, black, or champagne, matching modern and commercial interiors.
• Installation Methods: Can be installed using track rails, U-profiles, hooks, or custom ceiling systems, flexible for different mounting angles.
• Panel Weight: Weight ranges from 1.2 kg/m² to 6.0 kg/m², depending on wire diameter, pitch, and material used.
• Fire Resistance: Made from metallic non-combustible materials, suitable for use in fire-rated buildings and public interiors.
• Transparency Rate: Open area is usually 40% to 85%, balancing light flow, privacy, and visual openness in space division.
• Custom Shapes: Shapes include flat, curved, wave, or layered patterns, based on architectural needs or ceiling designs.
• Maintenance Needs: Requires minimal cleaning, often just a wipe with water or neutral detergent, due to smooth metal surface.
• Packing for Export: Packed in wooden crates or rolls, sealed with film to prevent scratches and moisture during shipment.

Picture Display

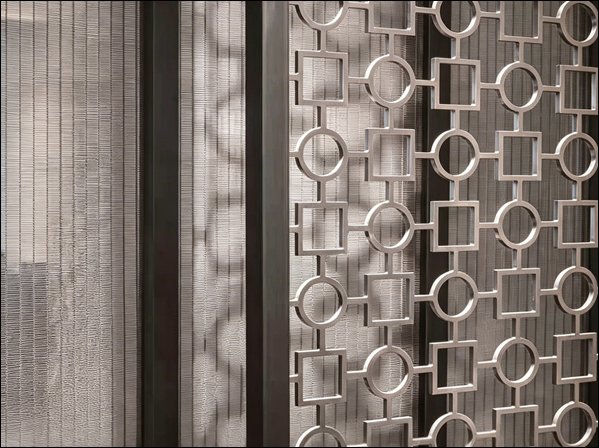

Stainless Steel Metal Ring Mesh Curtains For Luxury Interior Space Partitioning

• Material: 304 or 316 Stainless Steel.
• Ring Diameter: 7.0mm – 12.0mm. The outer width of each individual metal ring.
• Wire Gauge: 0.8mm – 1.5mm. The thickness of the wire used to form rings.
• Weave Style: Four-in-one interlocking ring pattern (Chainmail style).
• Surface Finish: High-gloss polished or matte satin metallic finish.
• Tensile Strength: High resistance to tearing due to interlocking link design.
• Flexibility: 360-degree multi-directional flexibility, draping like a fluid fabric.
• Weight: 3kg – 5kg per m² depending on ring size.
• Installation: Stainless steel rods with sliding ring carriers.
• Application: Luxury hotel lobby dividers and high-end restaurant backdrops.

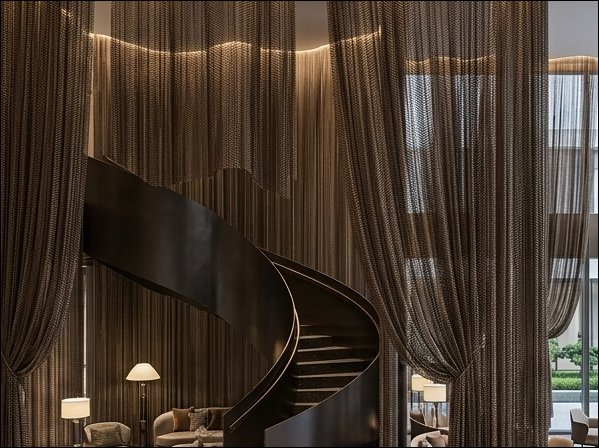

Flexible Aluminum Metal Chain Link Fabric Coil Drapery Curtains For Window Displays

• Material : Lightweight Architectural Aluminum Alloy.
• Link Type: Interlocking "S" hooks or double-link chain fabric.
• Wire Diameter: 1.0mm – 1.6mm. Provides a delicate yet durable structure.
• Color Treatment: Anodized oxidation available in gold, silver, or bronze.
• Transparency: 40% – 60% Open Area. Provides excellent visual through-flow.
• UV Resistance: 100% fade-resistant finish under direct retail lighting.
• Airflow: Allows for total ventilation and HVAC efficiency.
• Curtain Fullness: Recommended 150% - 200% for a rich, wavy appearance.
• Maintenance: Anti-static surface that does not attract dust.
• Application: Fashion boutique window displays and creative interior accents.

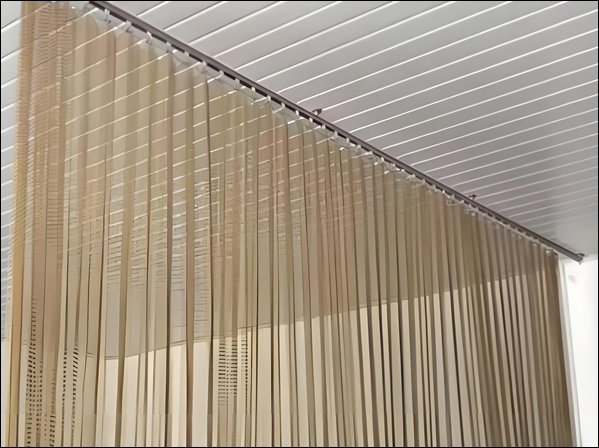

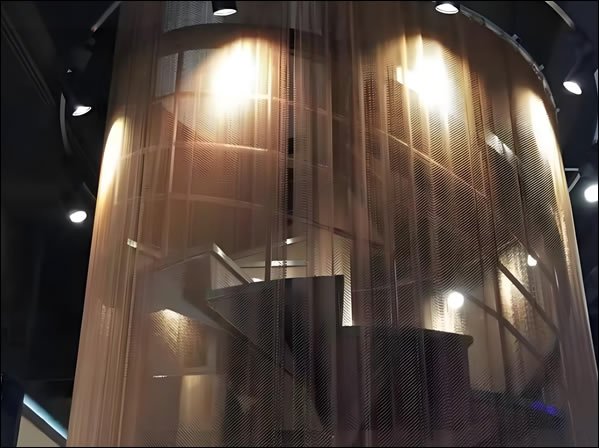

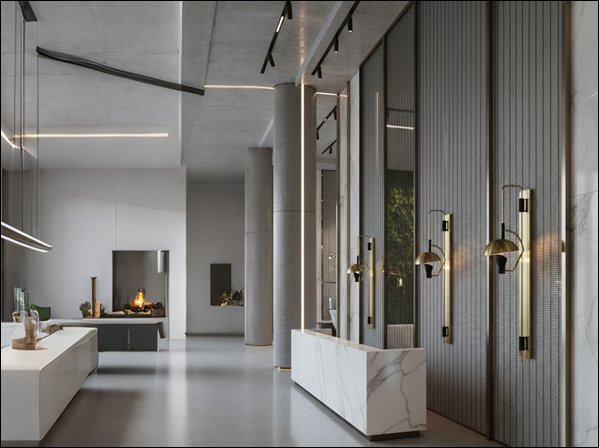

Architectural Mesh Coil Drapery For Modern Office Ceiling And Wall Decorations

• Material: Pre-galvanized Steel.
• Aperture (Pitch): 4.0mm – 10.0mm. The distance between each coil.
• Wire Diameter: 1.0mm – 1.2mm. Standard sizing for interior decorative use.
• Panel Width: Up to 4000mm. Large spans for continuous wall covering.
• Coating Finish: Lacquer or plating in metallic charcoal or gold.
• Fire Performance: Class A non-combustible material safety rating.
• Light Diffusion: Designed to soften and scatter harsh overhead light.
• Installation Method: Track system or fixed tensioned cable.
• Aesthetics: Creates a 3D textured effect on flat wall surfaces.
• Application: Office reception walls and theater stage decorations.

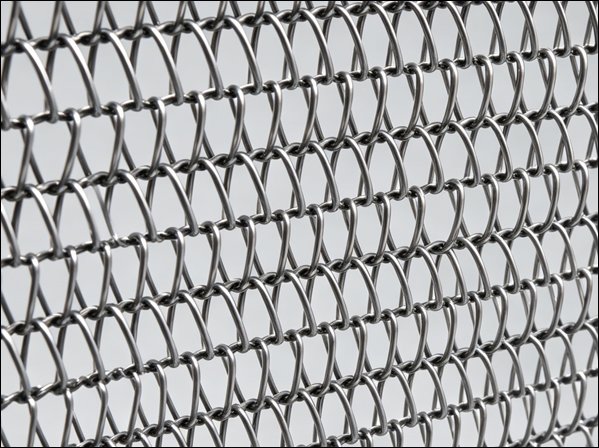

Metallic Spiral Metal Coil Drapery Screens For Interior Room Division and Solar Protection

• Material: High-Tensile Manganese Steel or Stainless Steel.
• Spiral Pitch: 6.0mm – 15.0mm. Wider spacing for an industrial look.
• Wire Gauge: 1.2mm – 2.0mm. Thicker wire used for improved durability.
• Overall Thickness: 5.0mm – 8.0mm. The depth of the coiled mesh.
• Solar Shading: Blocks up to 60% of solar heat gain when used at windows.
• Finish: Metallic powder coating for a smooth, colorful surface.
• Flexibility: Flexible along the horizontal axis for drawing like a curtain.
• Durability: Resists impact and does not sag over time.
• Hardware: Heavy-duty aluminum headrail with nylon rollers.
• Application: Sunshade window curtains and residential room dividers.

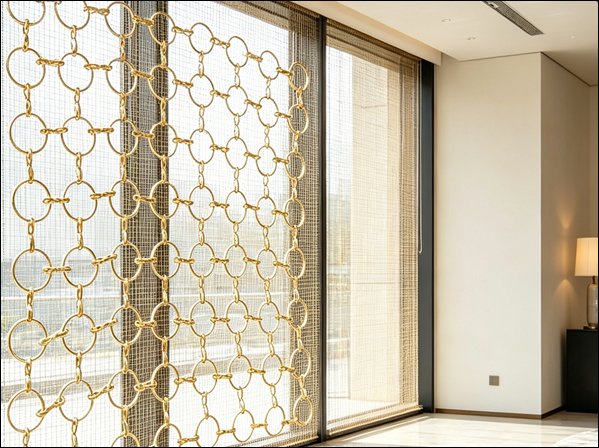

Decorative Metal Ring Mesh Curtains For Elegant Hotel Reception and Lounge Area Partitions

• Material: Brass, Bronze, or Chrome-plated Stainless Steel.
• Ring Inner Diameter: 5.0mm – 10.0mm. Smaller rings for a high-density look.
• Wire Thickness: 0.8mm – 1.0mm. Refined wire for a delicate appearance.
• Pattern: Seamlessly connected circular rings for a "liquid metal" drape.
• Shine Level: Mirror-finish options for maximum light reflection.
• Cleaning: Can be steam-cleaned or wiped with a soft cloth.
• Acoustics: Helps break up sound reflections in large, open lobbies.
• Attachment: Metal clips or direct-rod mounting systems.
• Customization: Can be manufactured in curved or irregular shapes.
• Application: VIP lounge partitions and hotel reception backdrops.

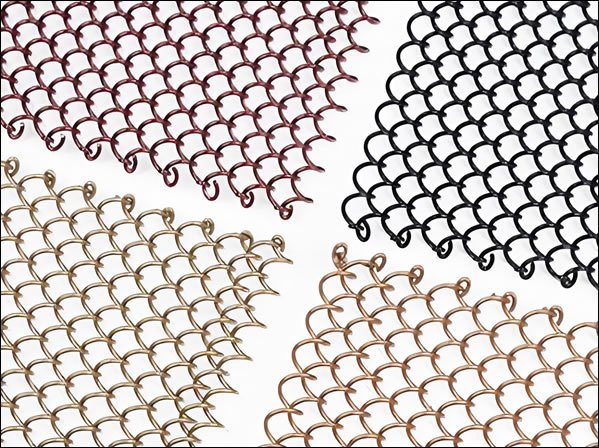

Flexible Metal Mesh Curtains For Innovative Interior Architecture and Creative Space Planning

• Material: 100% Recyclable Aluminum or Stainless Steel.
• Aperture Size: 3mm – 8mm. Small holes provide a semi-private screen.
• Wire Diameter: 1.0mm – 1.5mm. Balanced for weight and strength.
• Drape Fullness: Recommended 200% for heavy, elegant pleats.
• Color Coating: Durable epoxy or anodized finish in various colors.
• Transparency: Varies by viewing angle; provides directional privacy.
• Installation Speed: Quick-clip system for fast commercial setups.
• Sustainability: Long-life material that is 100% recyclable.
• Weight Capacity: Designed to support its own weight over long drops.
• Application: Trade show booths, exhibitions, and creative studio dividers.

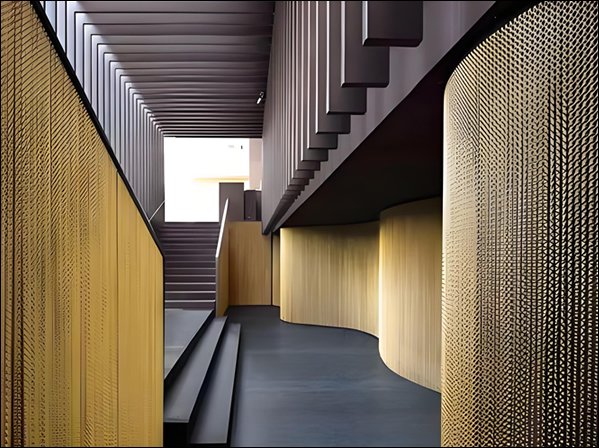

Architectural Coil Drapery Mesh Curtains For Commercial Building Lobby And Mezzanine Decoration

• Material: Phosphor Bronze.
• Pitch (Spacing): 5.0mm – 12.0mm. Standard spacing for lobby height.
• Wire Gauge: 1.2mm. Standard thickness for durability in public areas.
• Surface Finish: Champagne Gold or Antique Bronze PVD finish.
• Panel Heights: Available in continuous lengths up to 10 meters.
• Light Transmission: 30% – 50% Open Area. Filters sunlight beautifully.
• Fire Safety: Non-flammable; ideal for high-occupancy public buildings.
• System: Manual or motorized track systems for opening/closing.
• Visual Effect: Shimmers and moves slightly with air currents.
• Application: Large lobby window coverings and mezzanine level railings.
